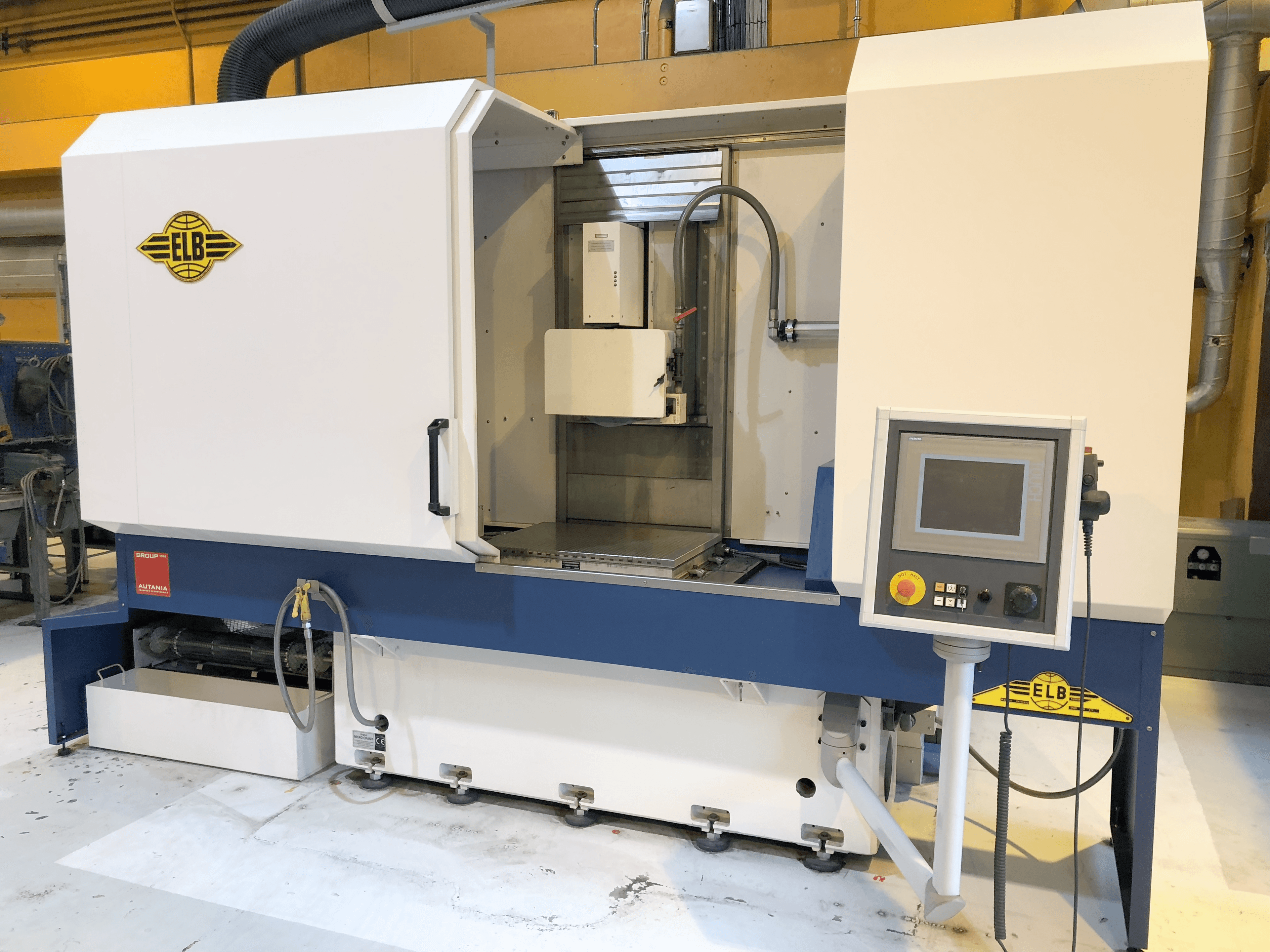

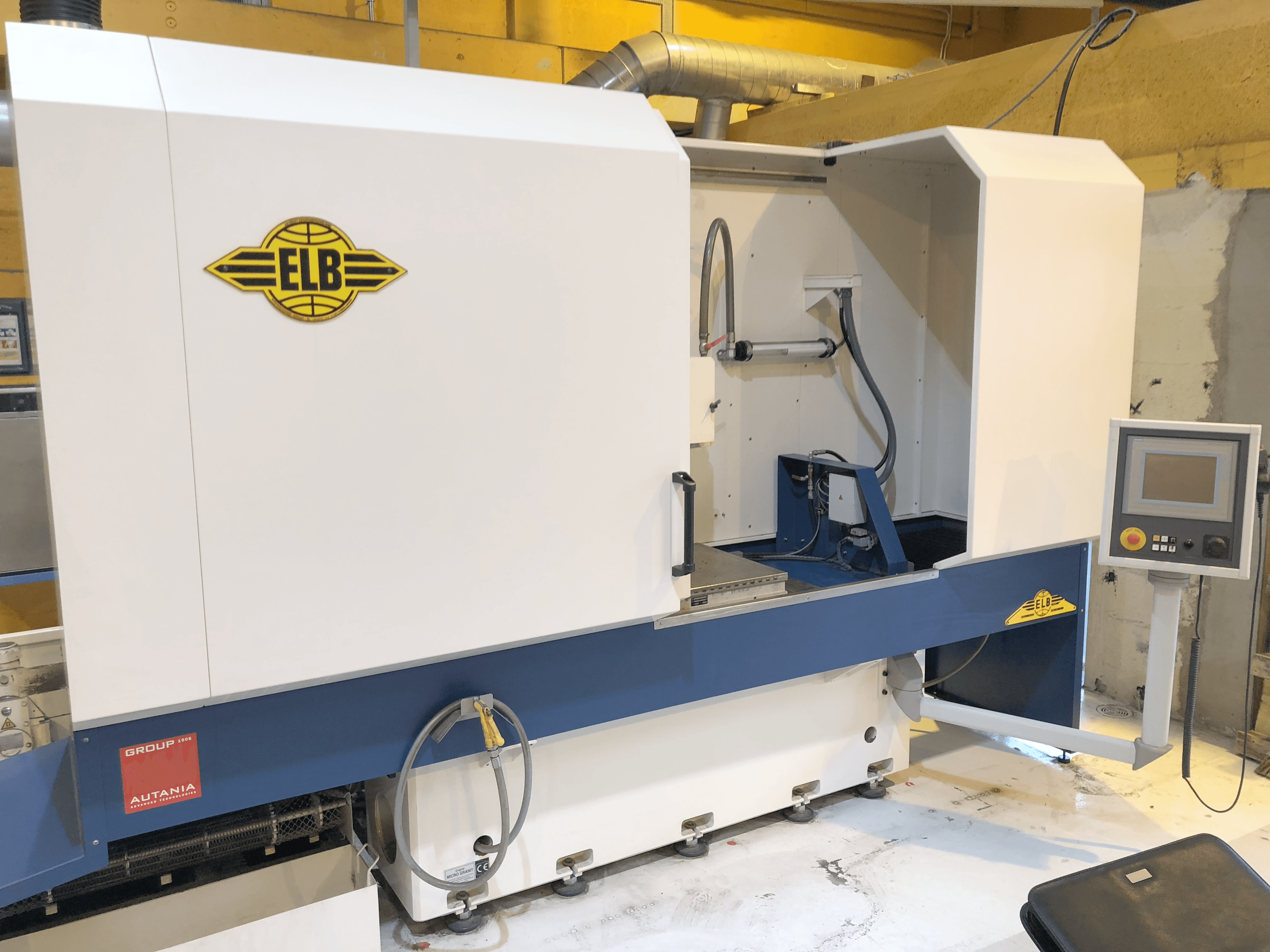

020348 - ELB SMART BD10 STC

Description

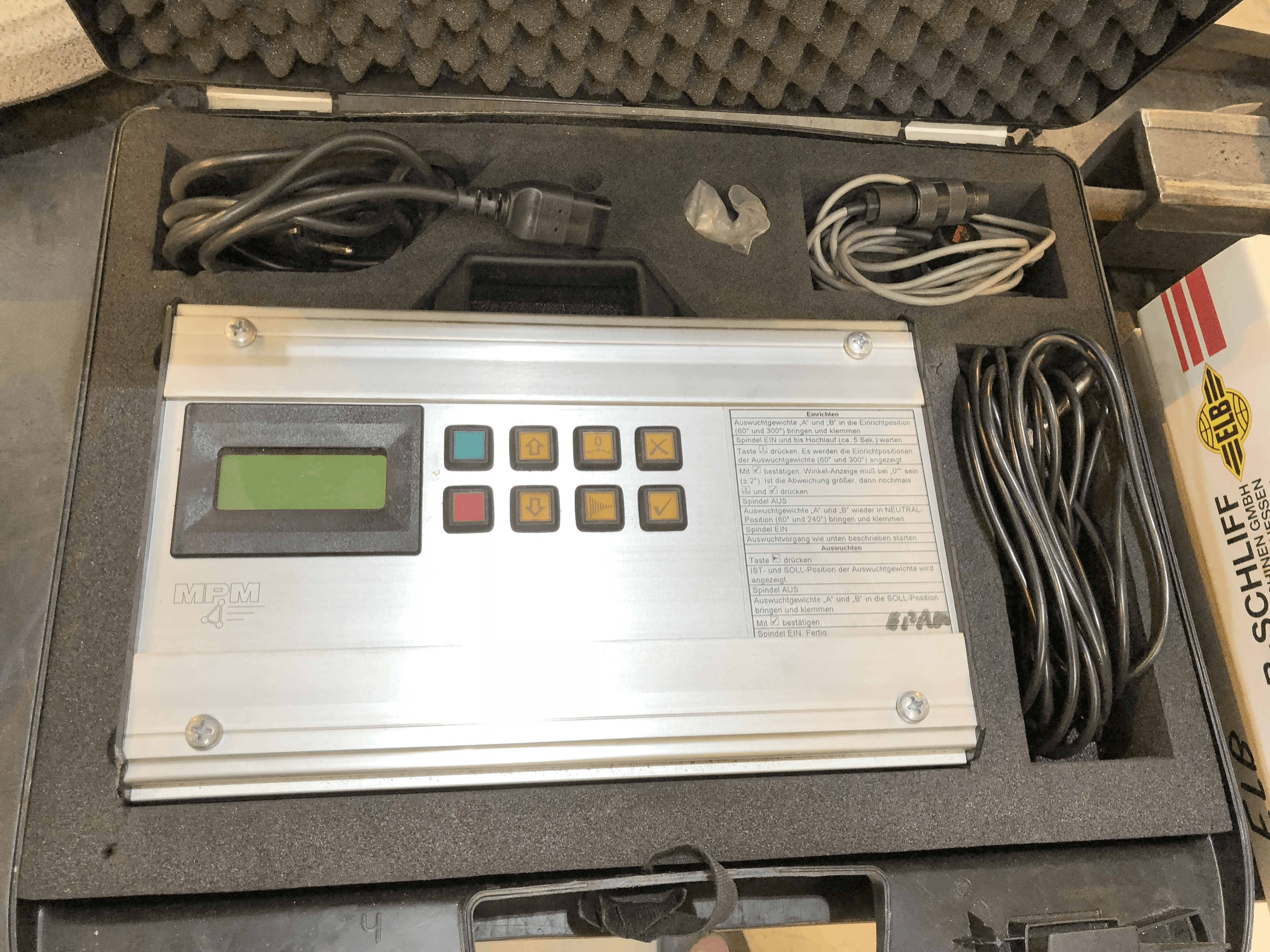

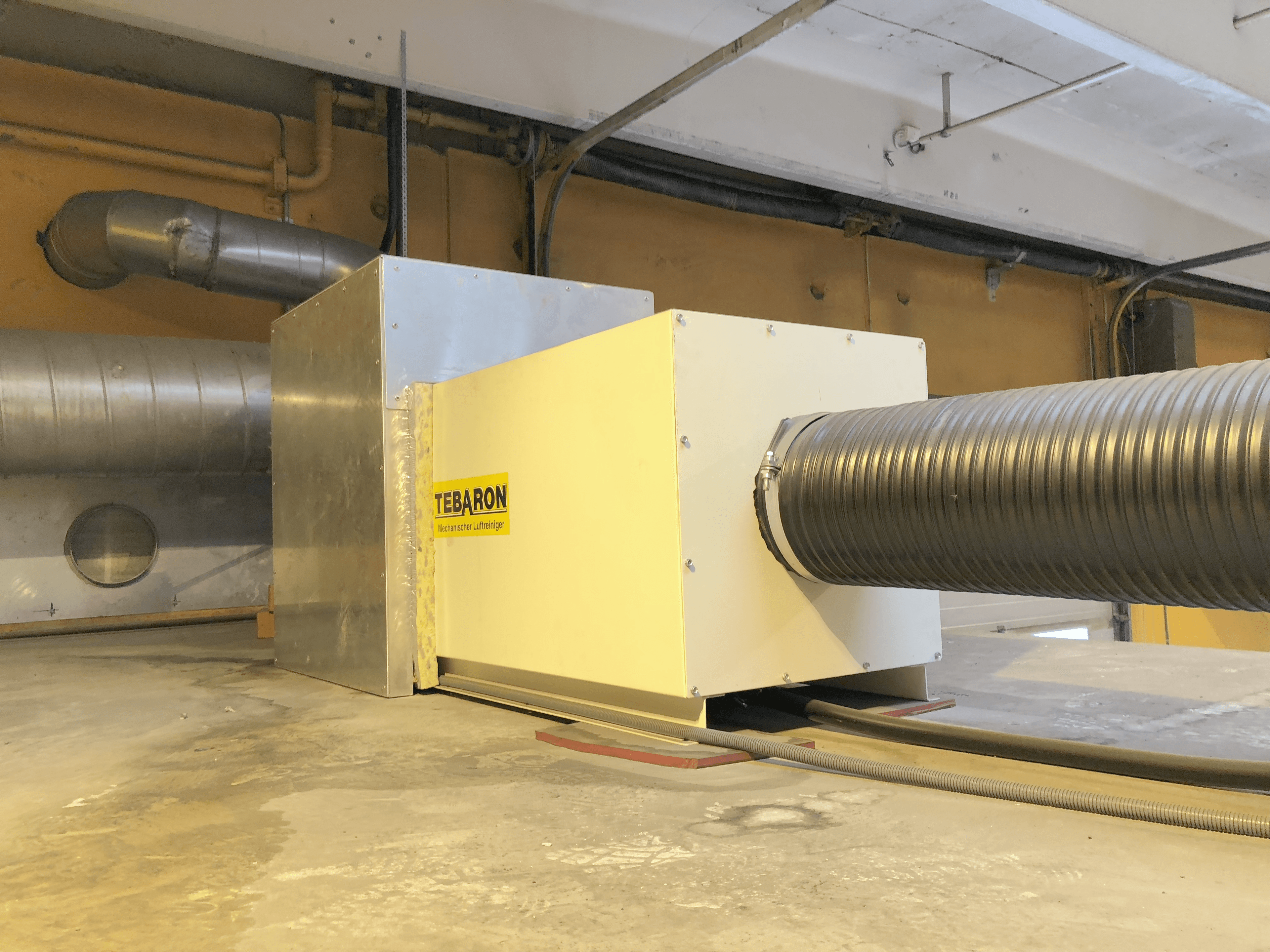

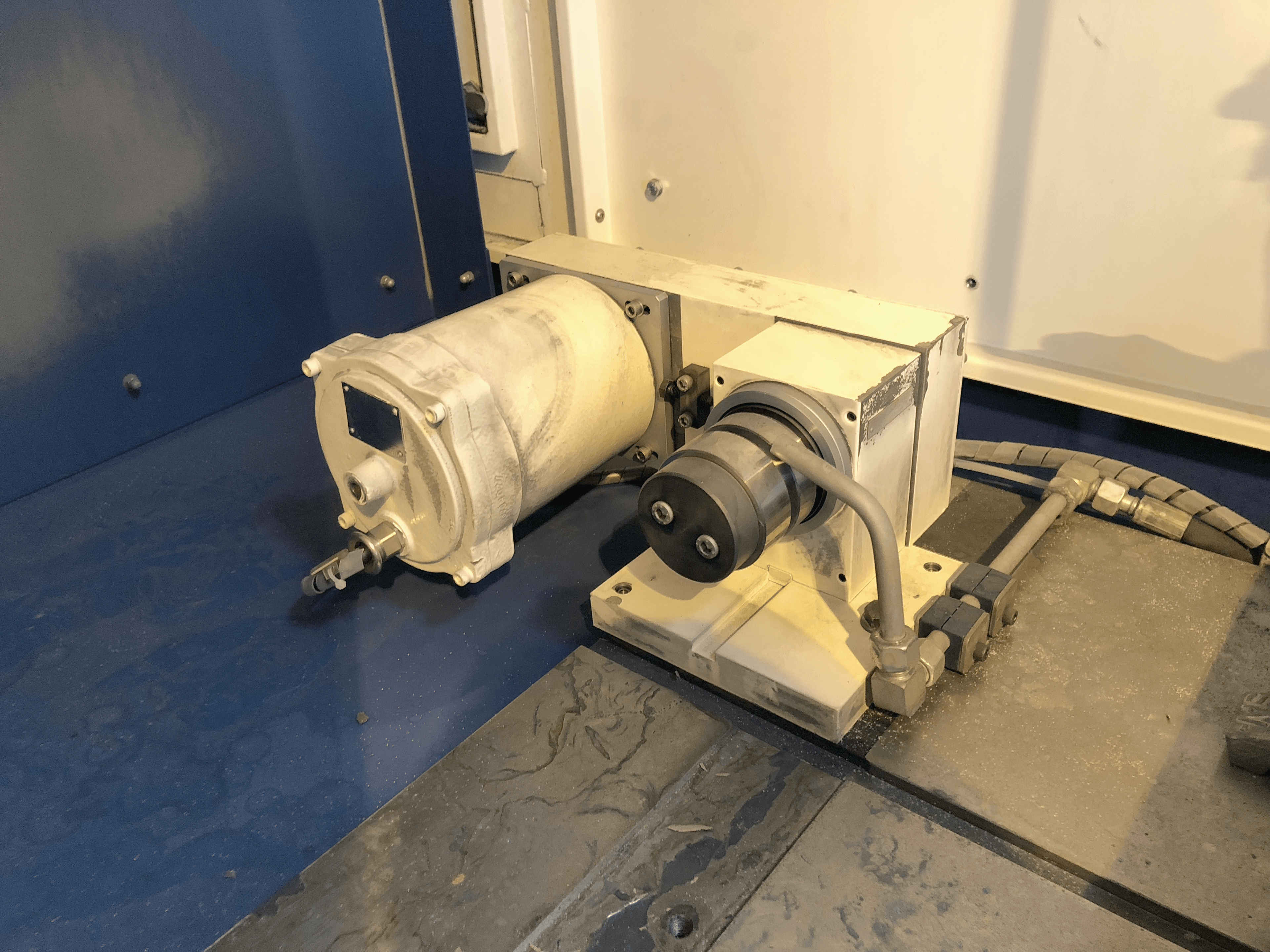

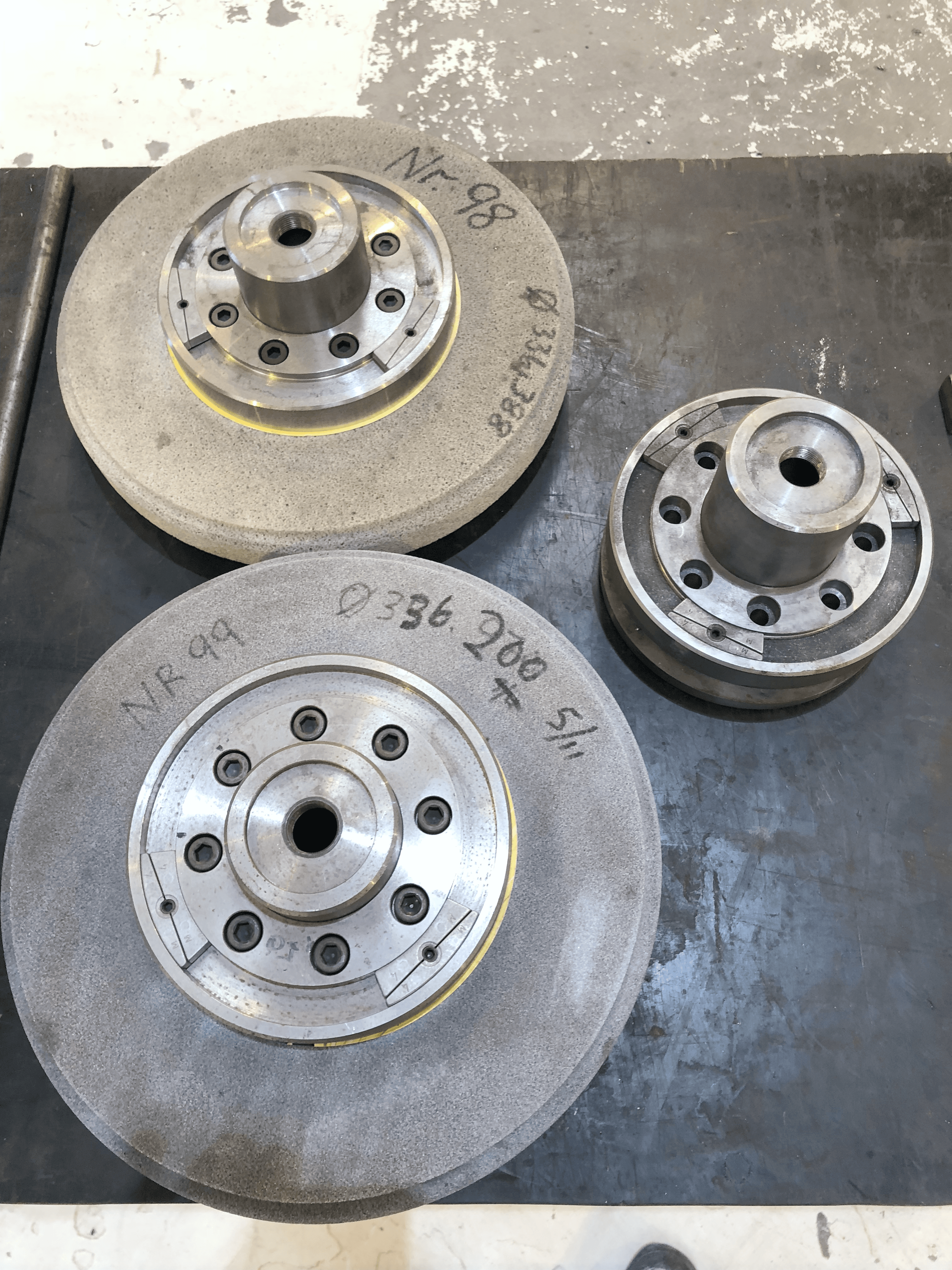

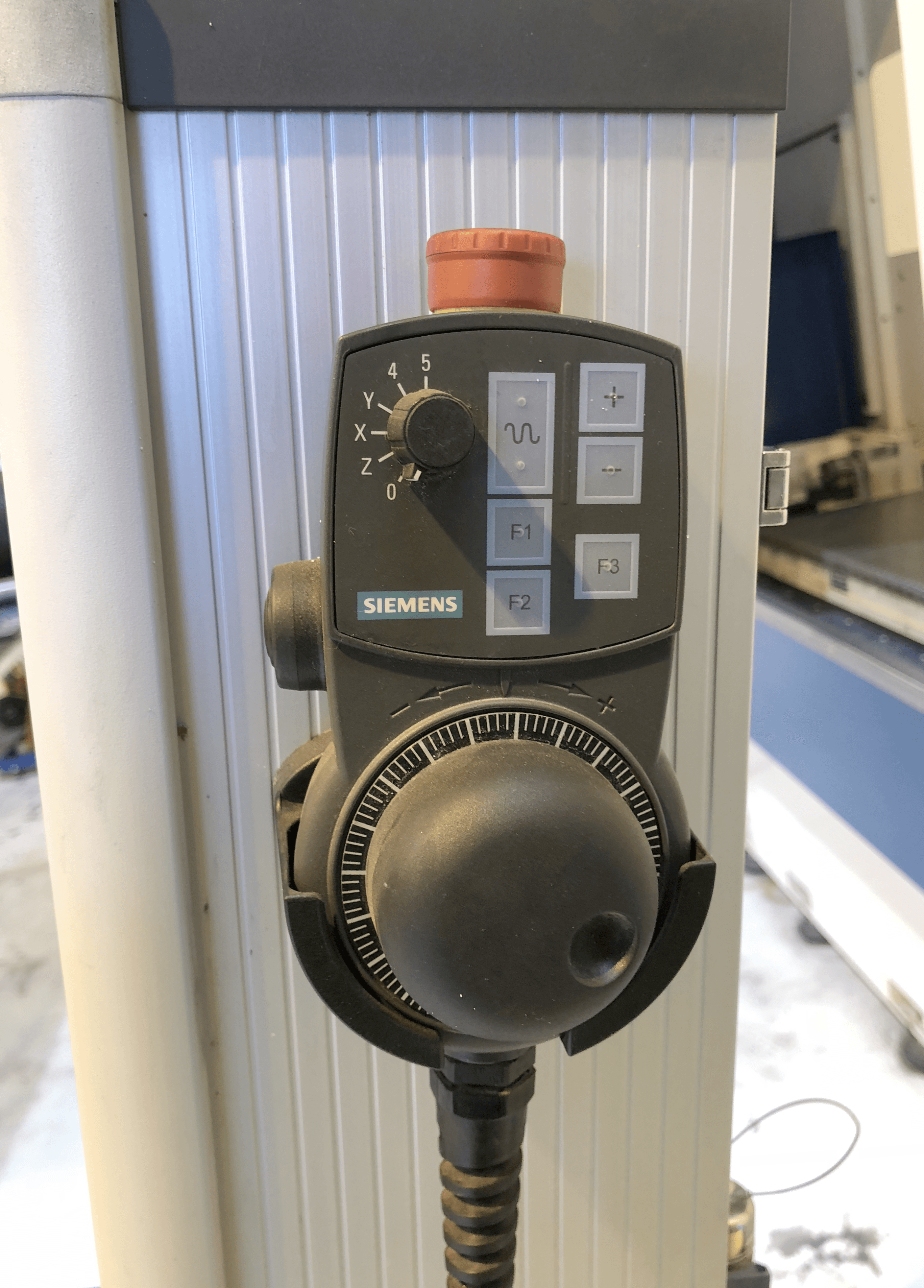

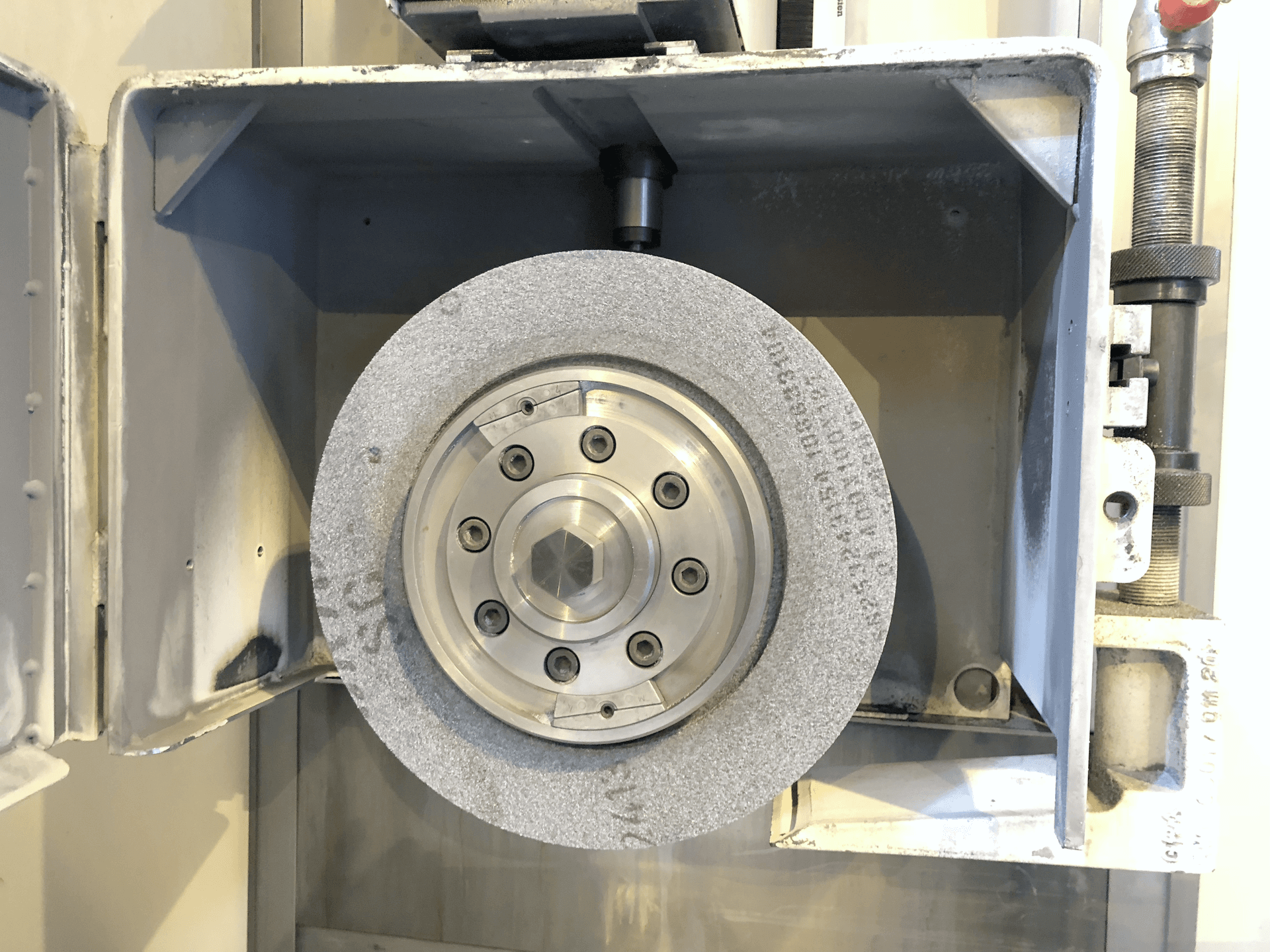

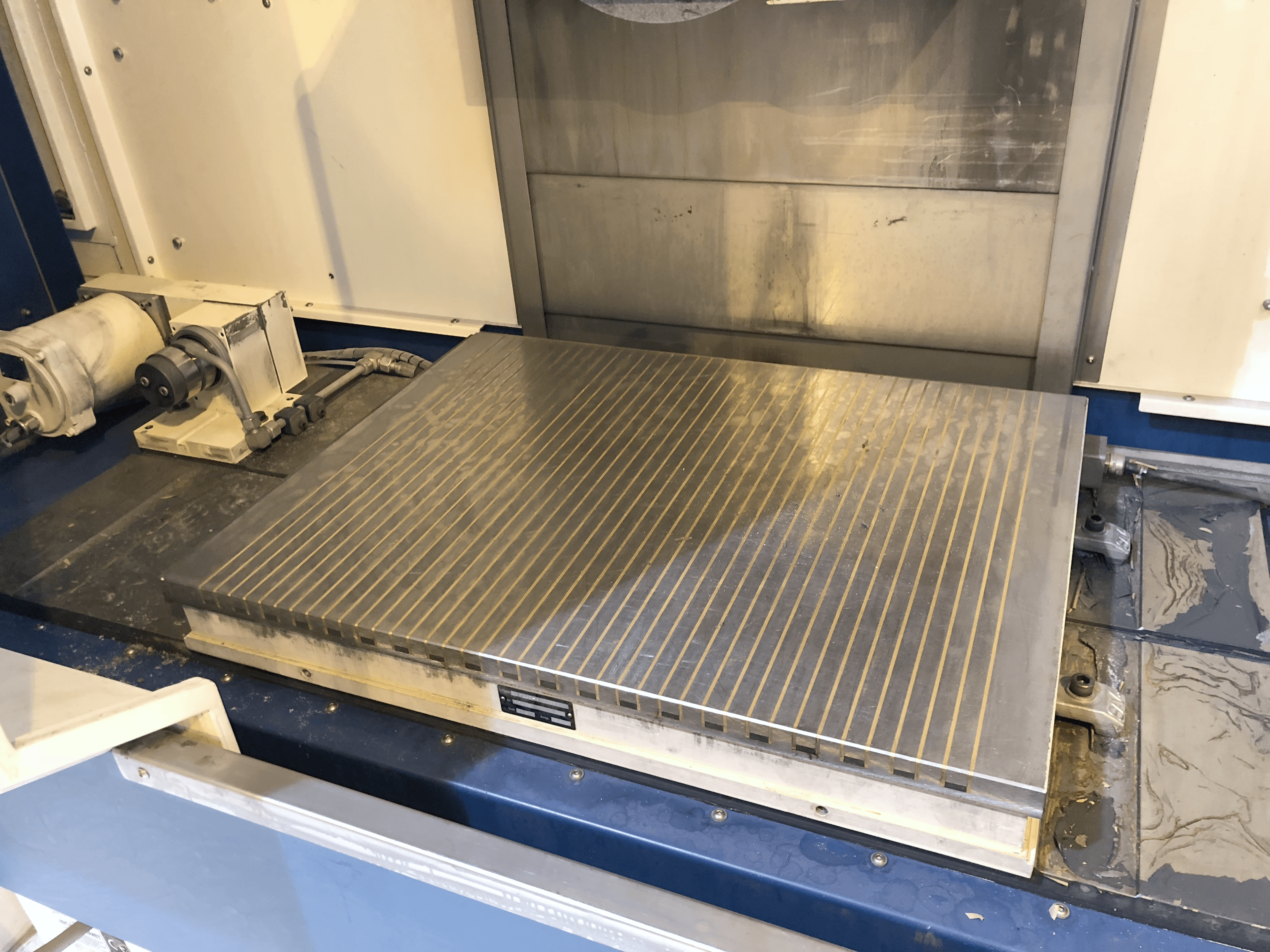

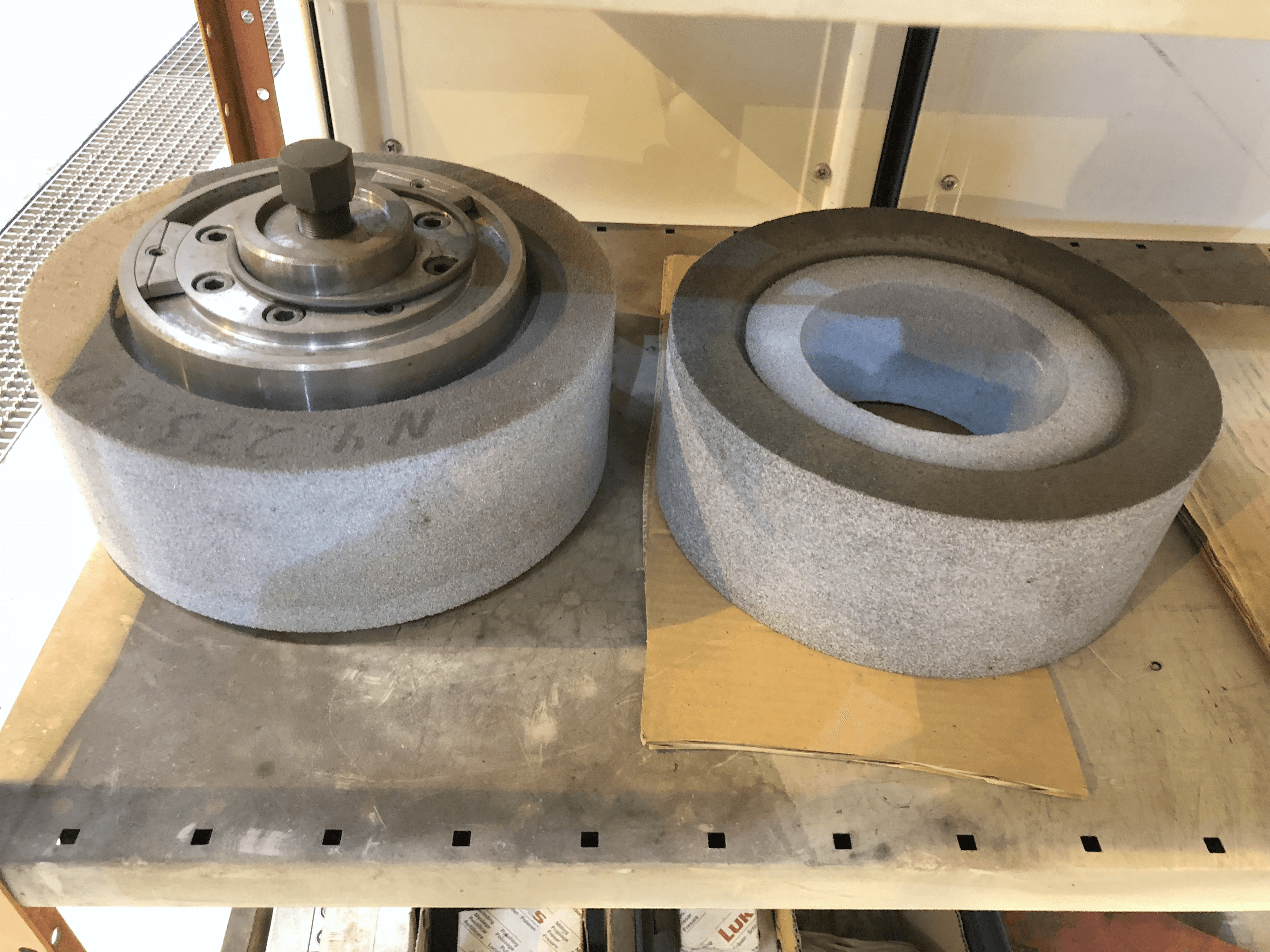

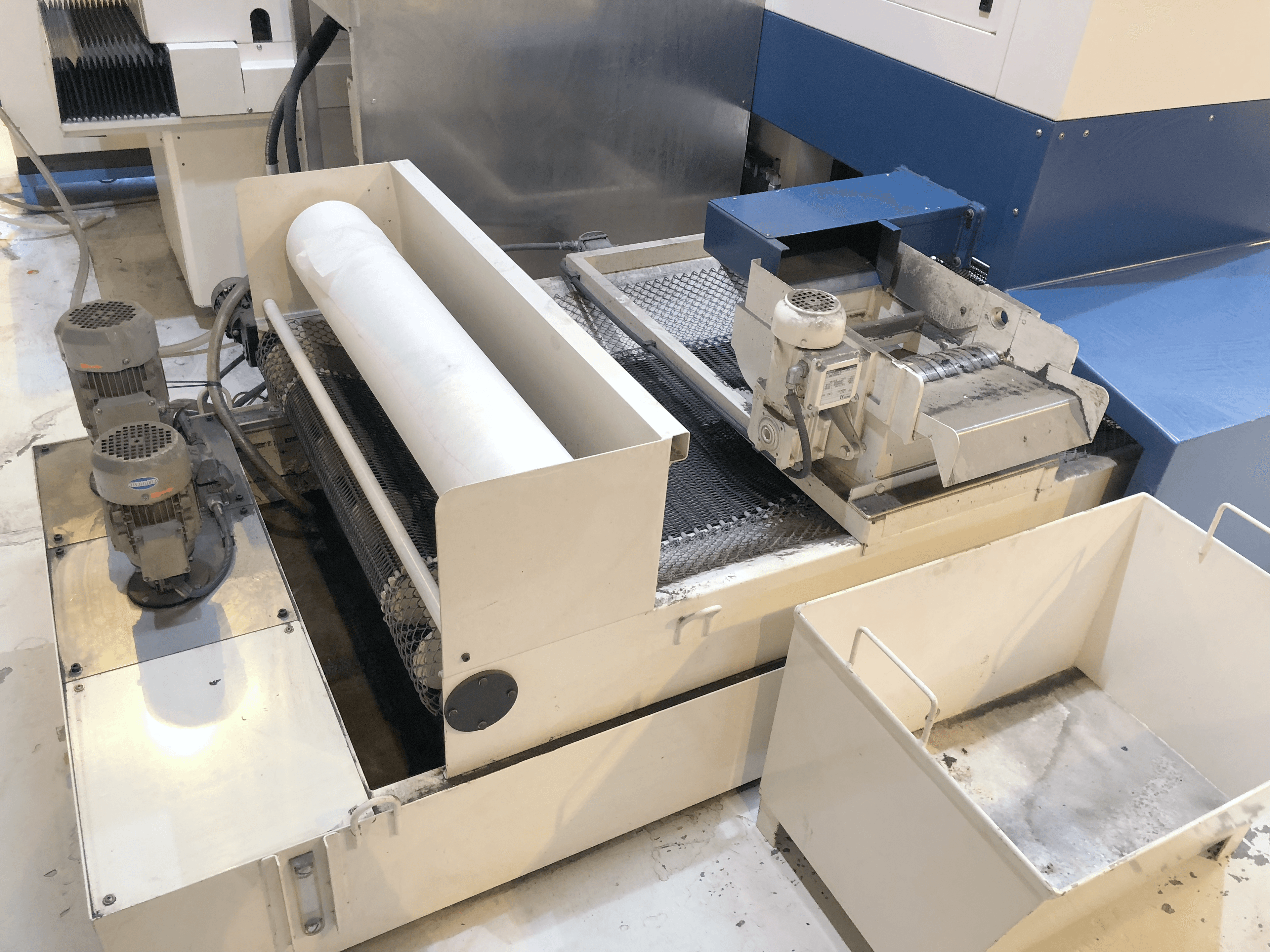

{"Table length": "1360 mm", "Table width": "590 mm", "Axial motion:": "", "Longitudinal travel (X-axis)": "1100 mm", "Cross travel (z-axis)": "670 mm", "vertical travel (Y-axis)": "400 mm", "Table load max.": "1000 kg", "Grinding length": "1000 mm", "Grinding width": "600 mm", "Grinding height over table": "640 mm", "Grinding wheel:": "", "Diameter": "400 mm", "Width": "600 mm", "Bore": "127 mm", "Grinding wheel speeds:": "1450", "Table speeds:": "", "stepless": "", "from": "mm/min", "up to": "1500 mm/min", "Automatic cross feed:": "", "Automatic vertical feed:": "", "Vertical rapid traverse": "1 m/min", "Noise level": "75 dB (A)", "Voltage 50 Hz 3x": "400 Volt", "Grinding spindle motor": "10 kW", "Total power required": "30 kW", "Machine's weight about": "6900 kg", "Overall dimensions machine:": "", "Length": "800 mm", "Height": "2660 mm", "Various accessories:": "", "Coolant system": "", "Paper filtration system": "", "Oil mist extractor": "", "Magnetic plate:": "", "Redressing device": "", "Profile roll dressing device": "", "Set of grinding wheels": "", "Set of flanges": "", "Handwheel electroinic": ""}
