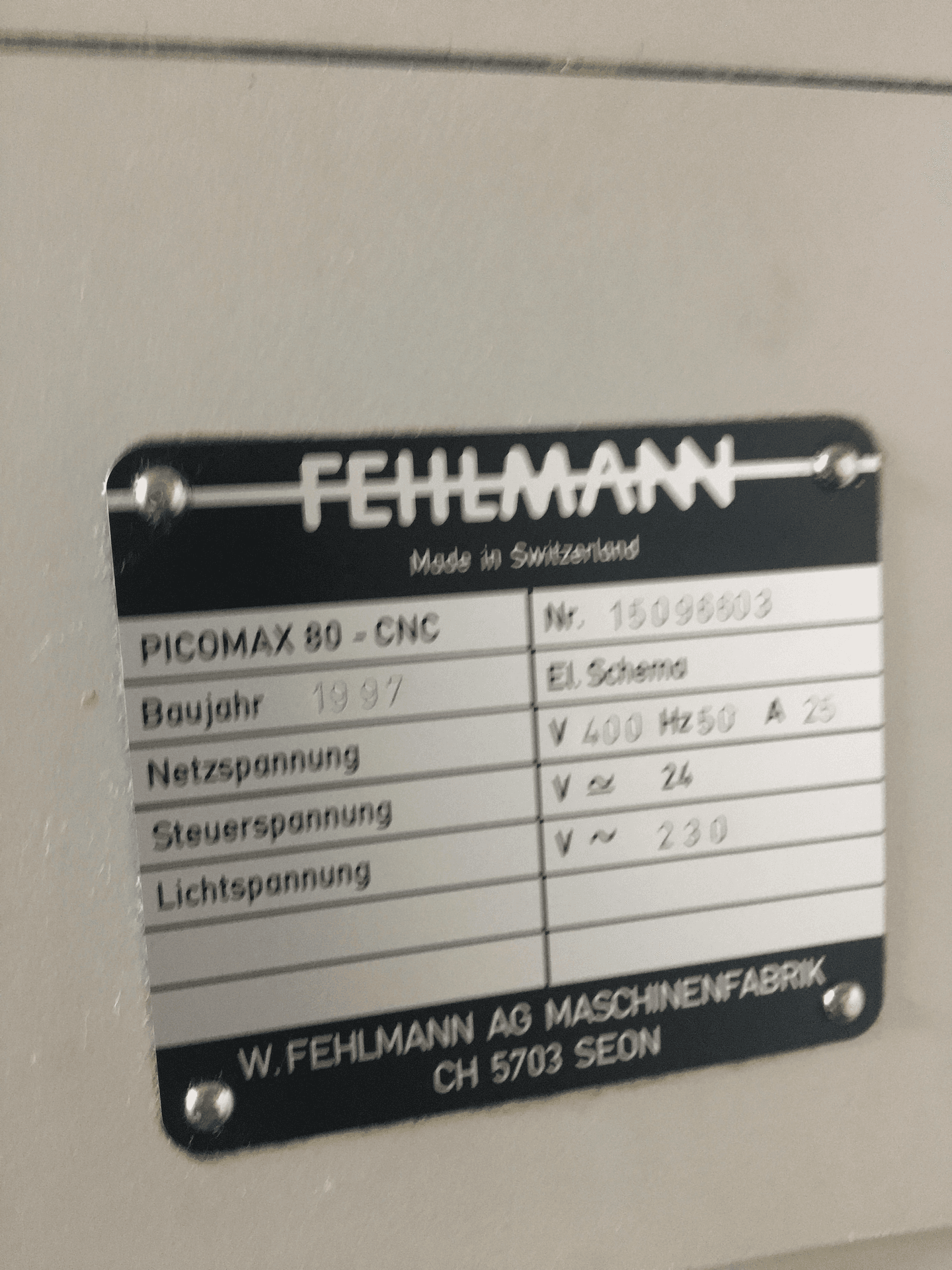

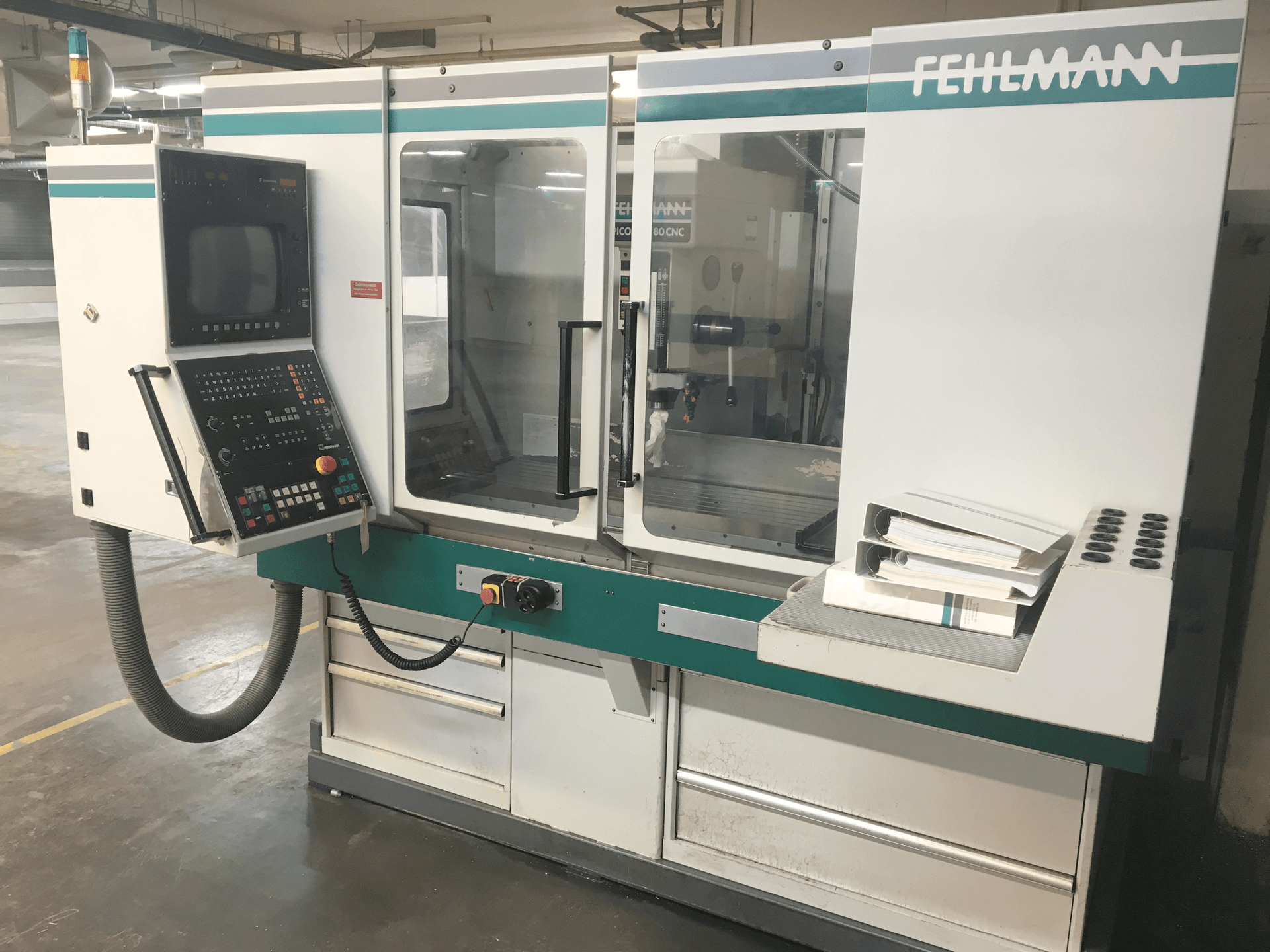

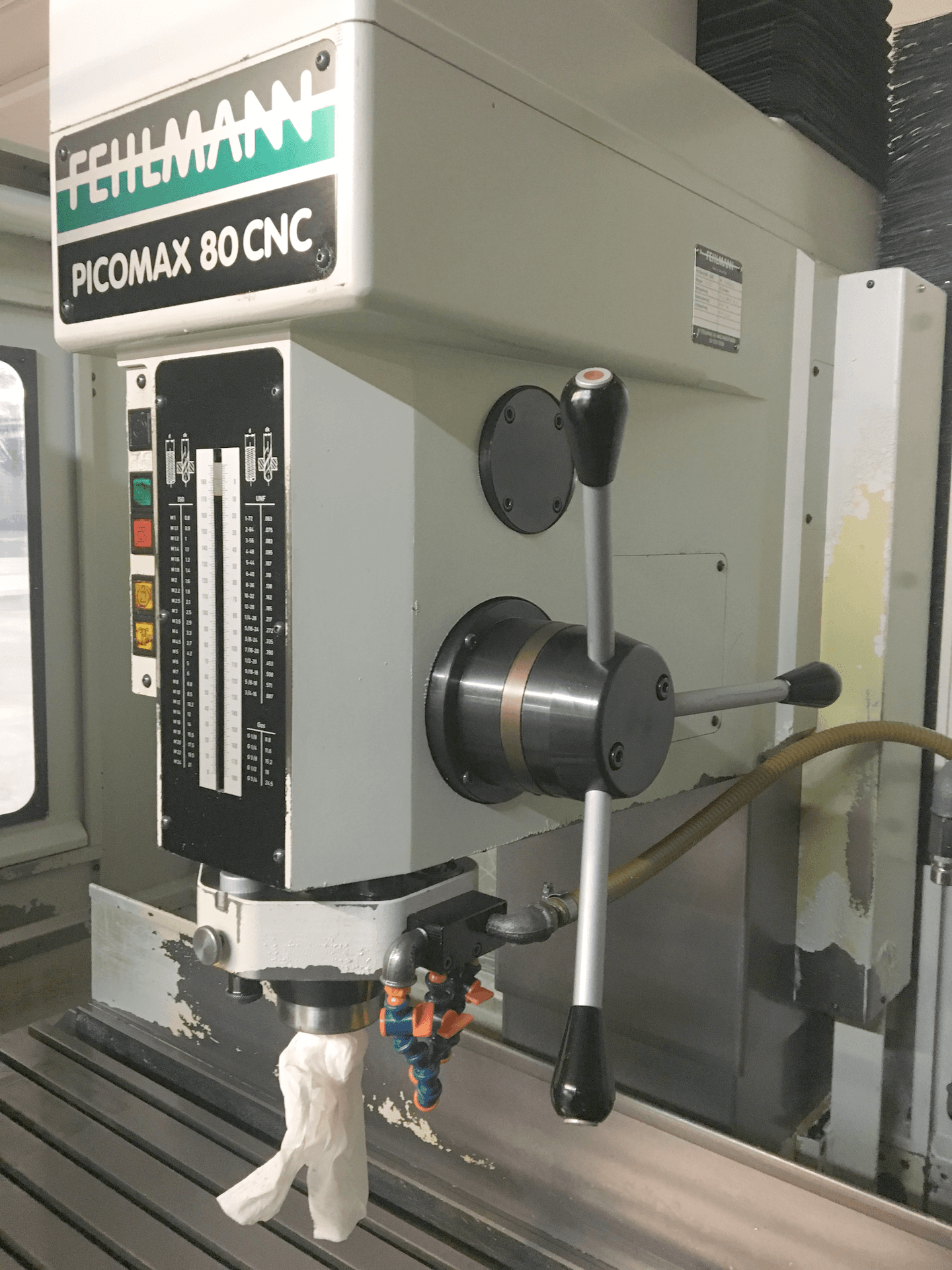

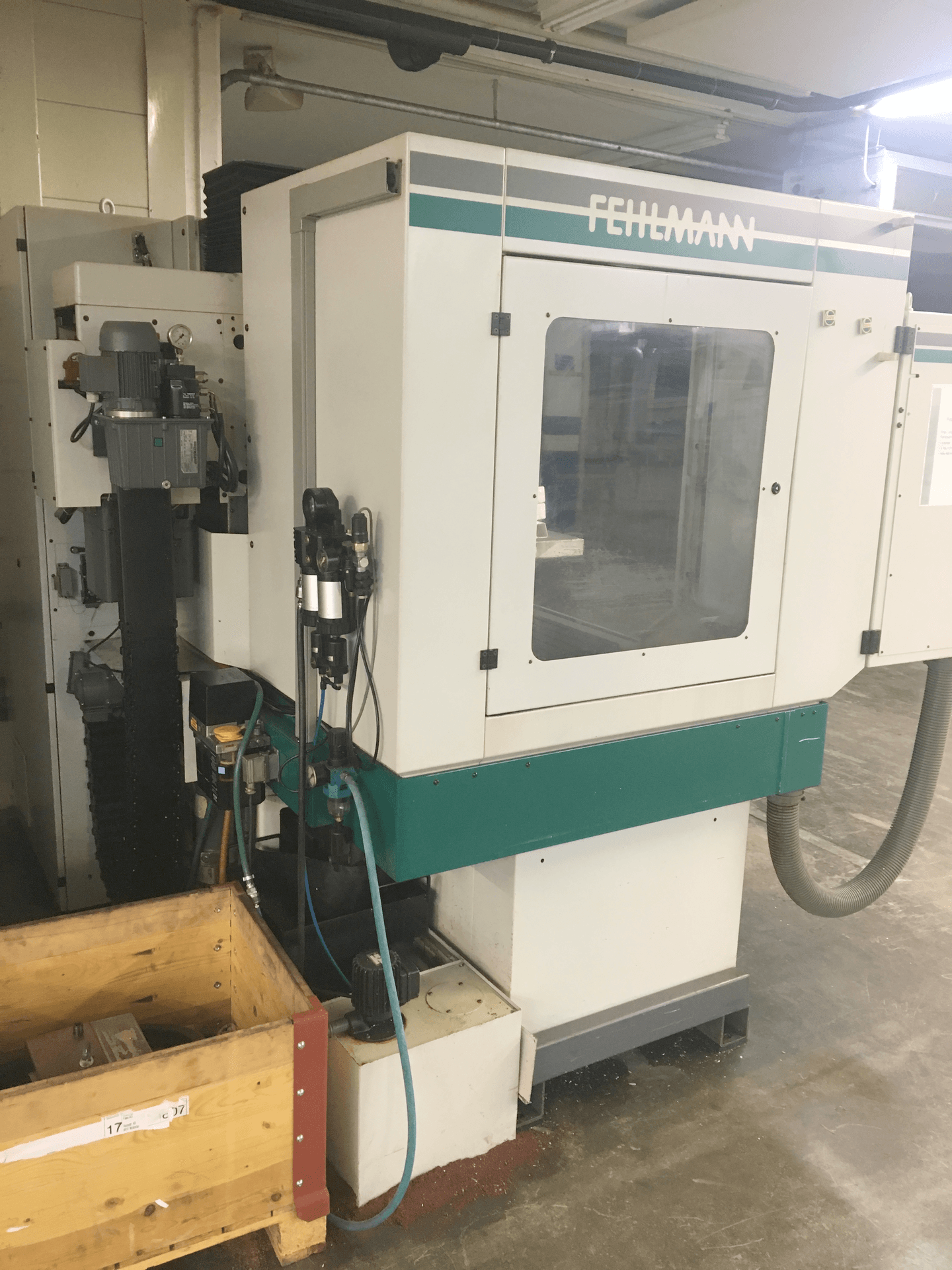

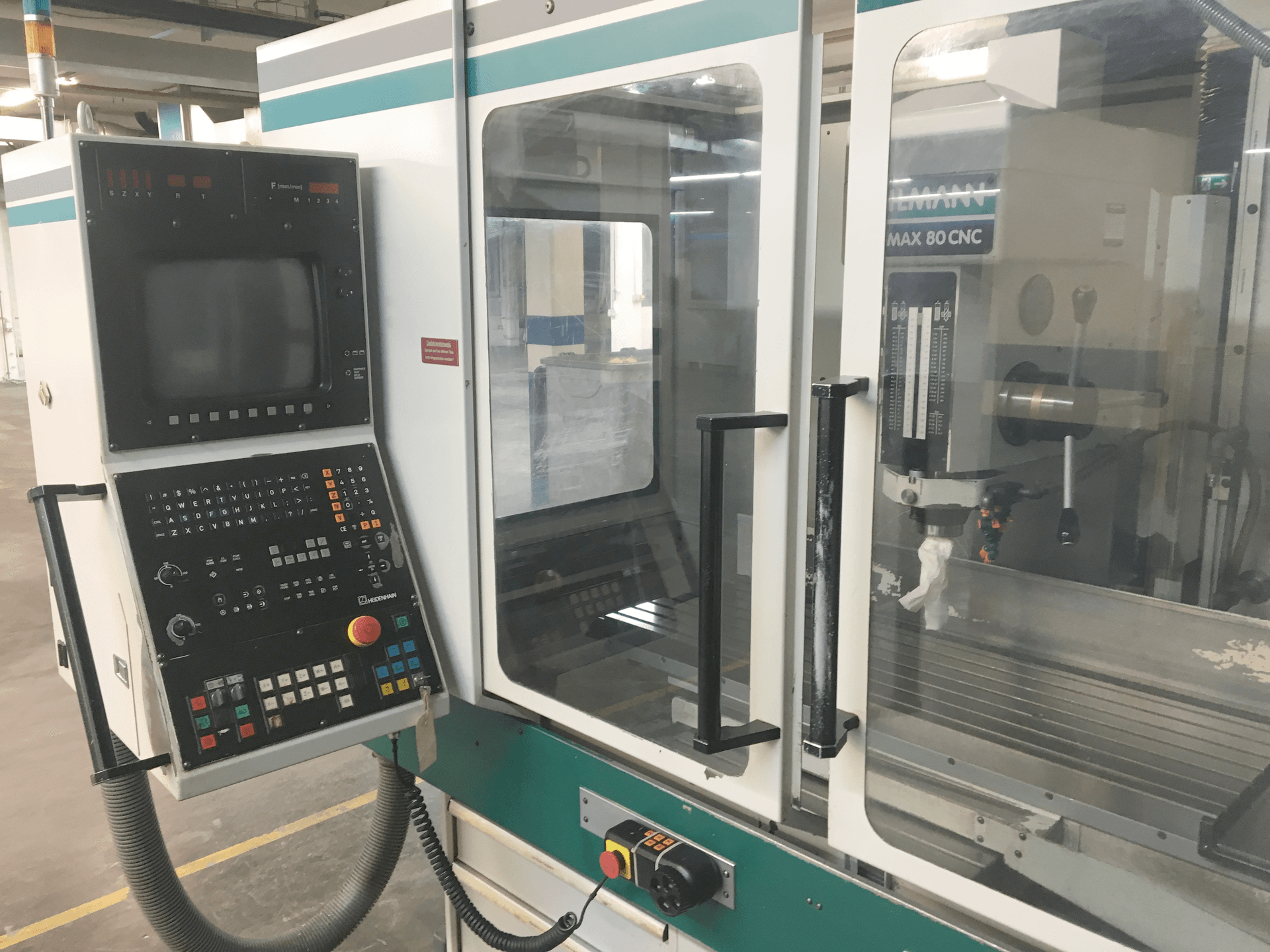

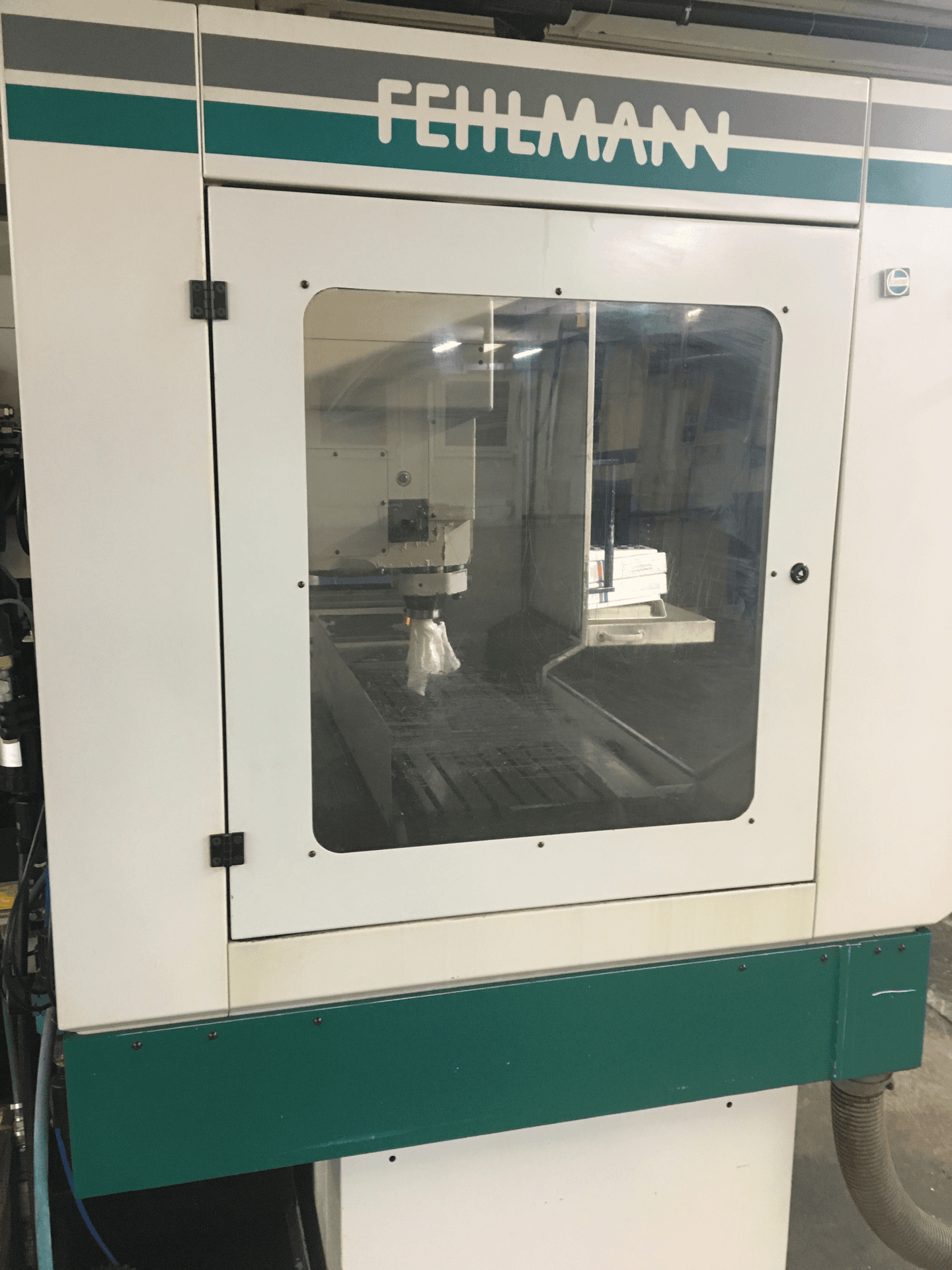

019656 - FEHLMANN PICOMAX 80 CNC 2/3

Description

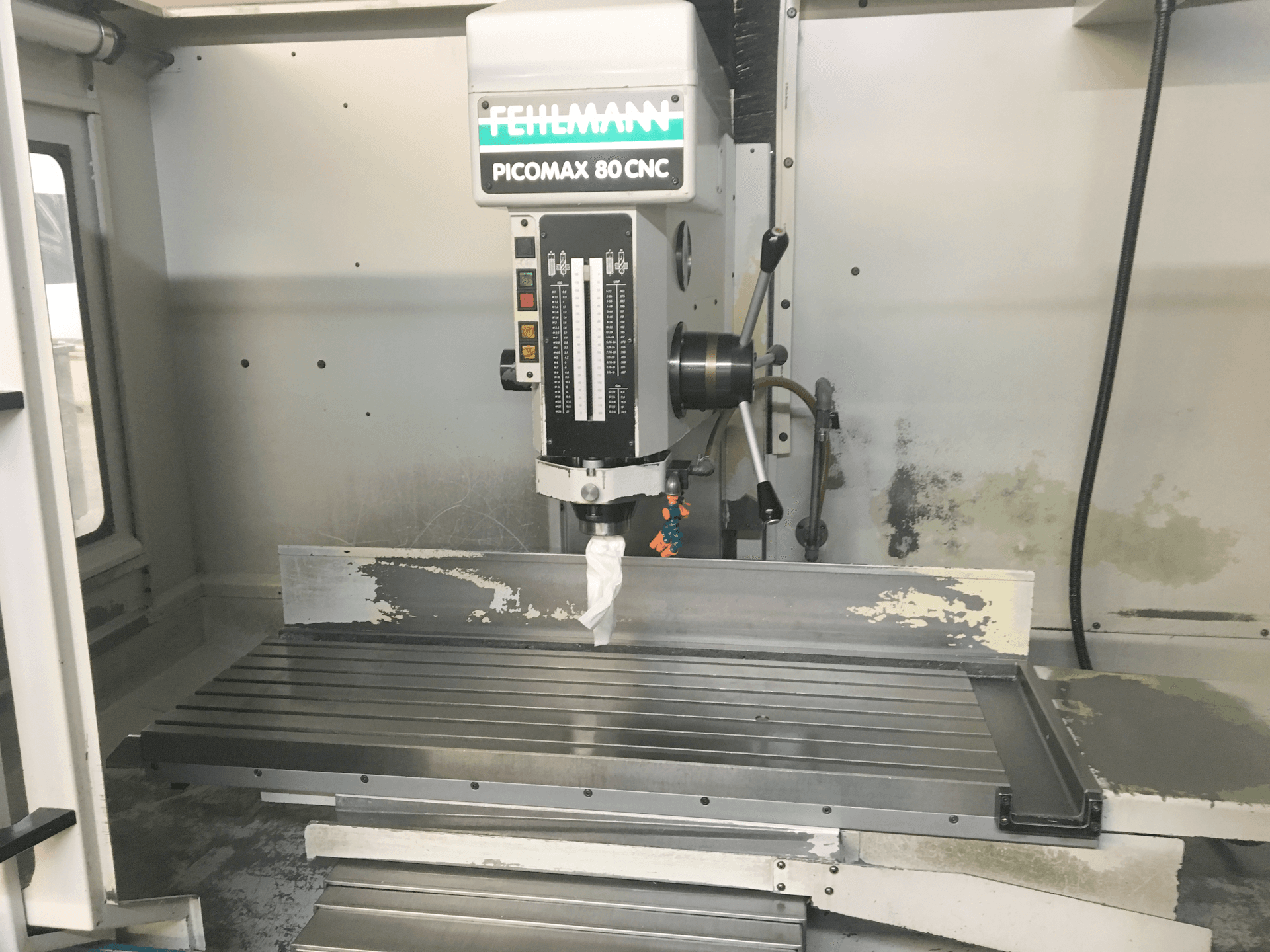

{"Number of axis total": "5", "Spindle nose:": "SF 32", "Drill capacity in steel": "30 mm", "Threat cutting in steel M": "24", "Milling capacity": "100 cm3/min", "Spindle speeds:": "", "from": "50 t/min", "up to": "9200 t/min", "Table length": "1230 mm", "Table width": "410 mm", "Number of T-channels": "7", "T-channel width": "12H8 mm", "Distance of the T-slots": "50 mm", "Table load max.": "250 kg", "Height of table above floor": "1010 mm", "Min. distance from table to spindle": "0 mm", "Max. distance from table to spindle": "620 mm", "Depth of throat": "370 mm", "Travels:": "", "X axis": "1 - 9000 mm/min", "Y axis": "1 - 9000 mm/min", "Spindle stroke (controlled)": "170 mm", "Z axis (Spindle stroke manual)": "180 mm", "W-axis (machine head travel)": "495 mm", "Feeds:": "", "Z axis": "1 - 4000 mm/min", "W axis": "1 - 4500 mm/min", "Rapid traverse X": "9 m/min", "Rapid traverse Y": "9 m/min", "Rapid traverse Z": "4 m/min", "Voltage 50 Hz 3x": "380 Volt", "Power": "16 kW", "Machine's weight about": "3200 kg", "Overall dimensions machine:": "", "Length": "2500 mm", "Width": "2500 mm", "Height": "2450 mm", "Various accessories:": "", "Dividing attachment 4th axis": "", "with teilstock": "", "3-jaw chuck diameter": "160 mm", "Collet device": "", "Set of toolholders": "", "Handwheel electroinic": ""}
