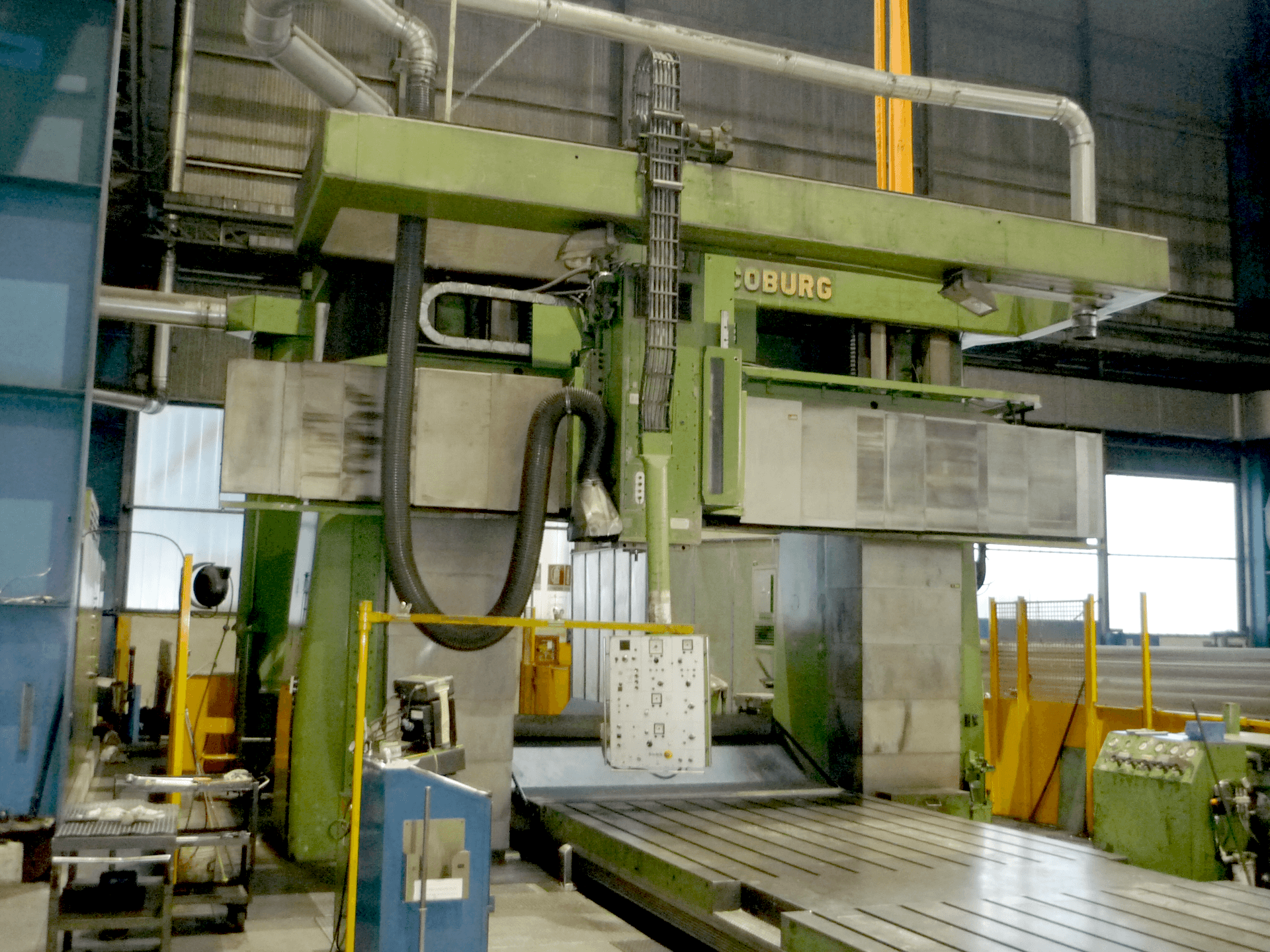

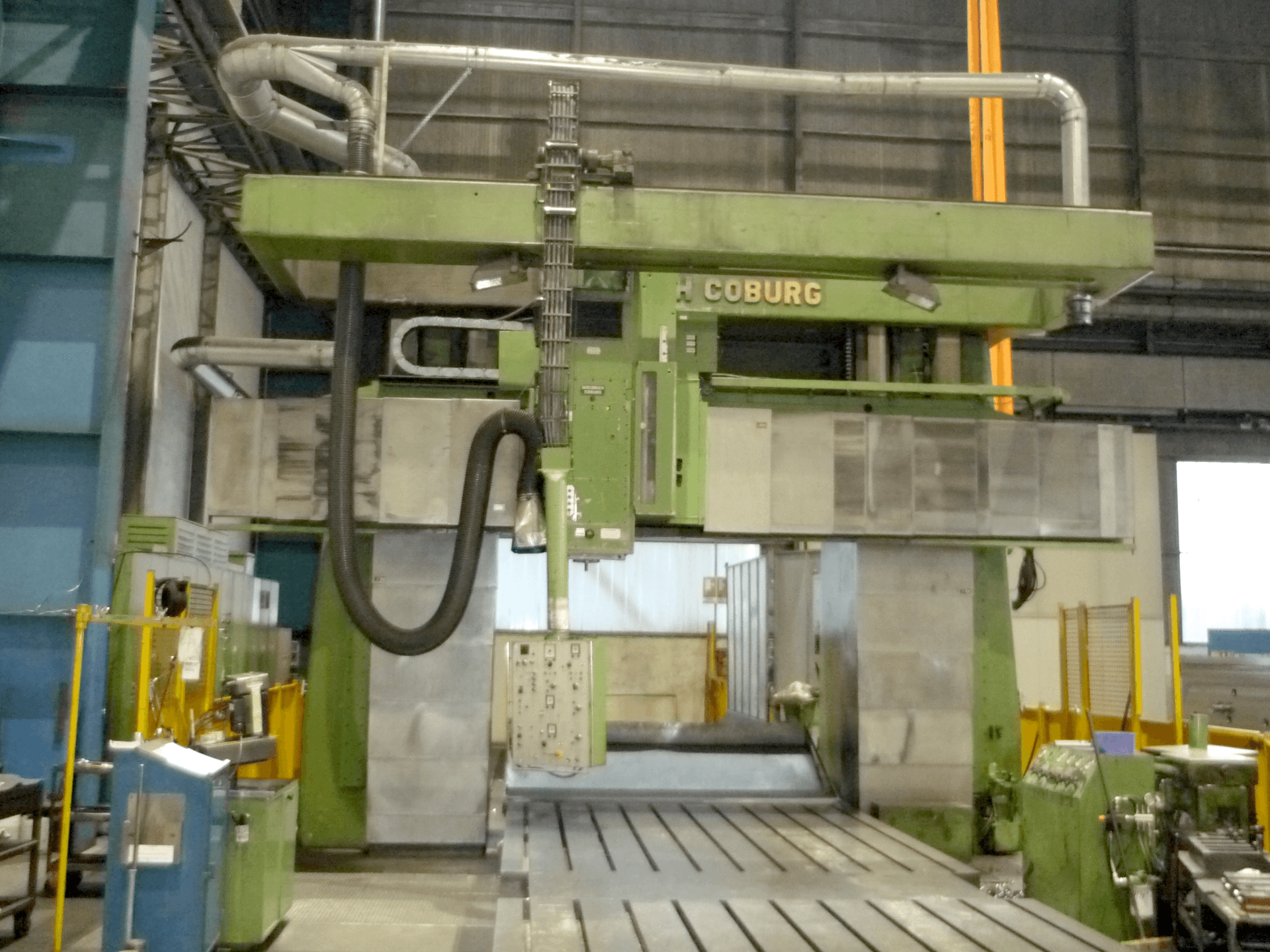

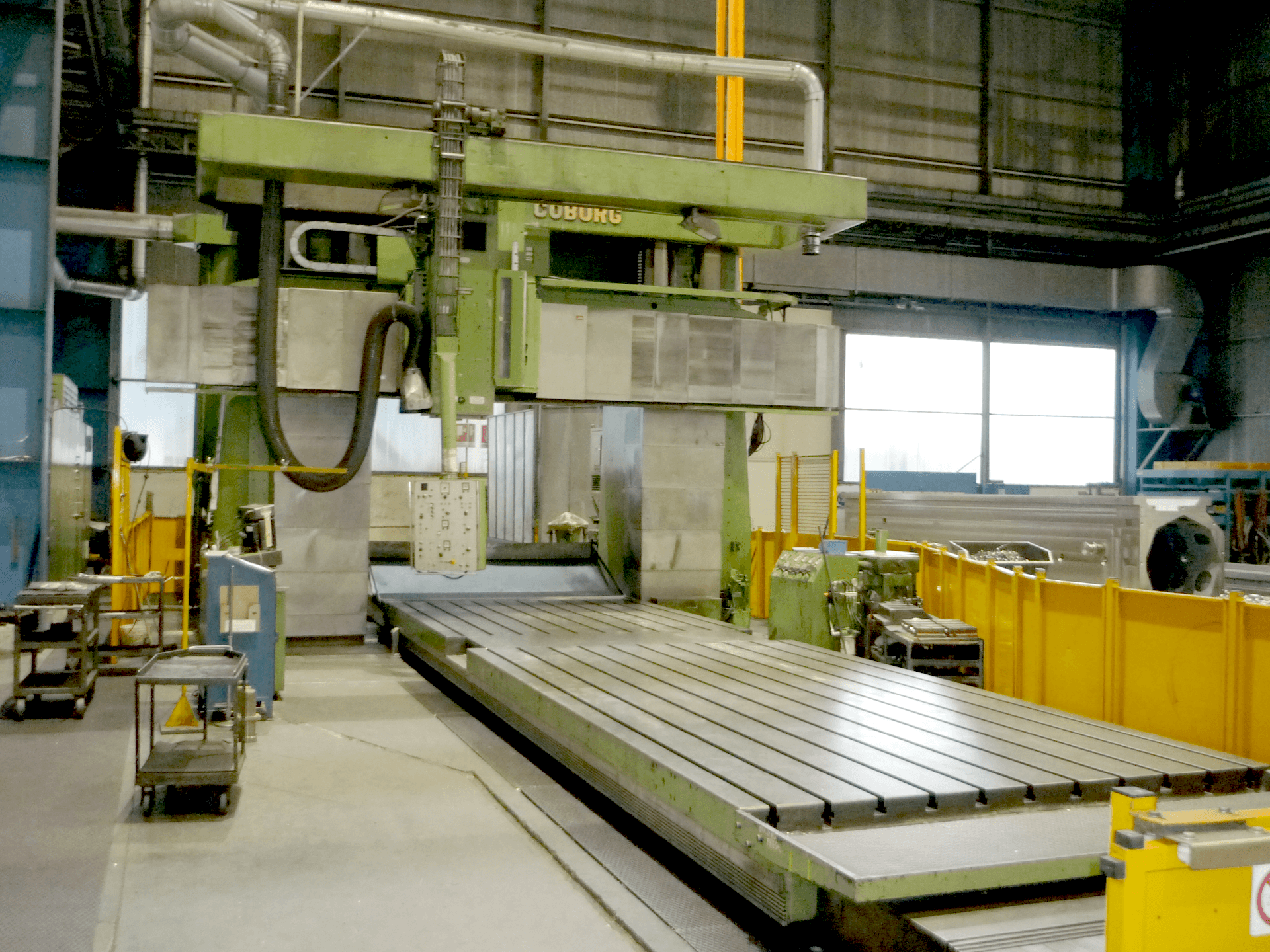

019353 - WALDRICH COBURG 20-10 FP 280

Description

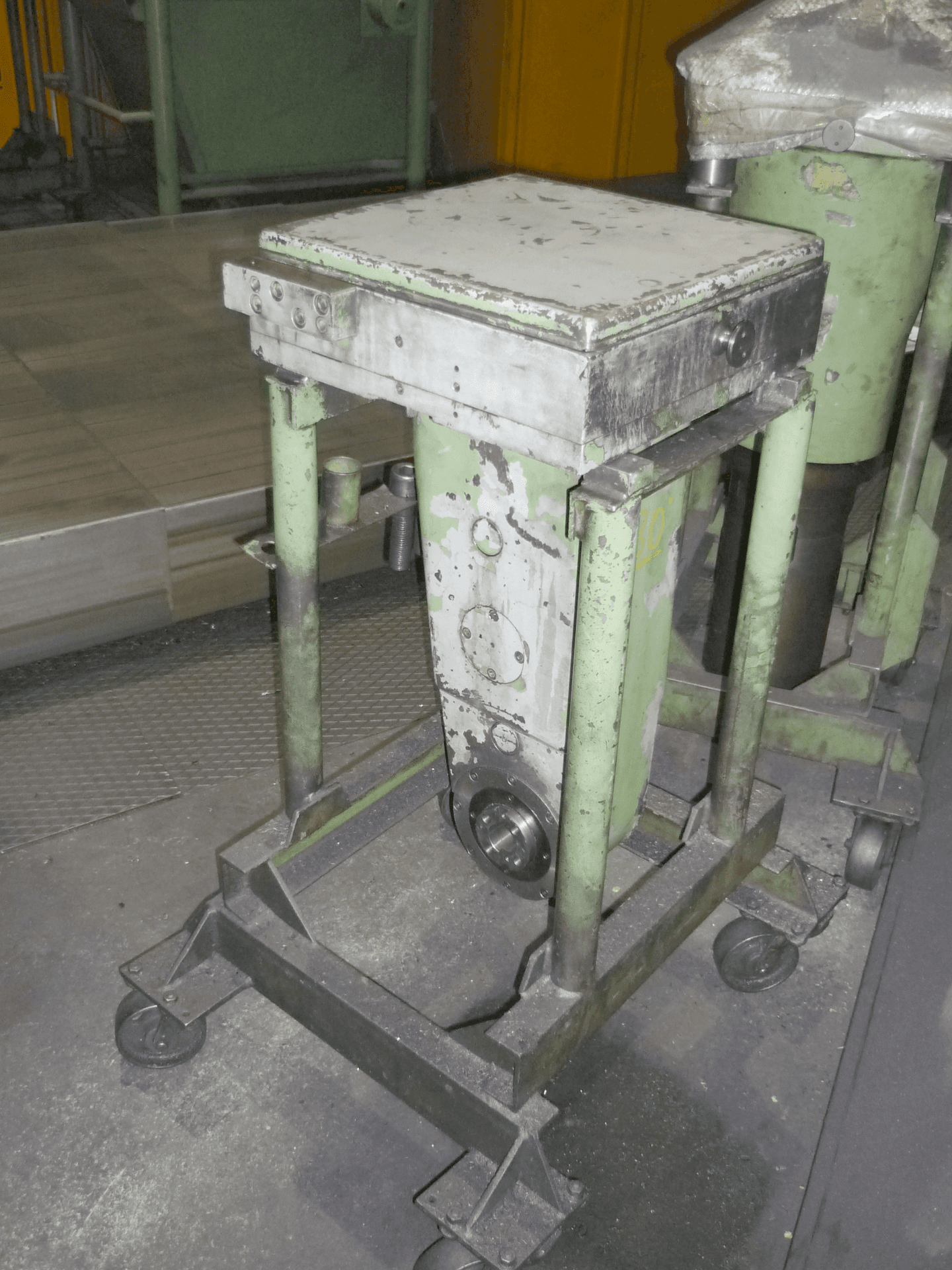

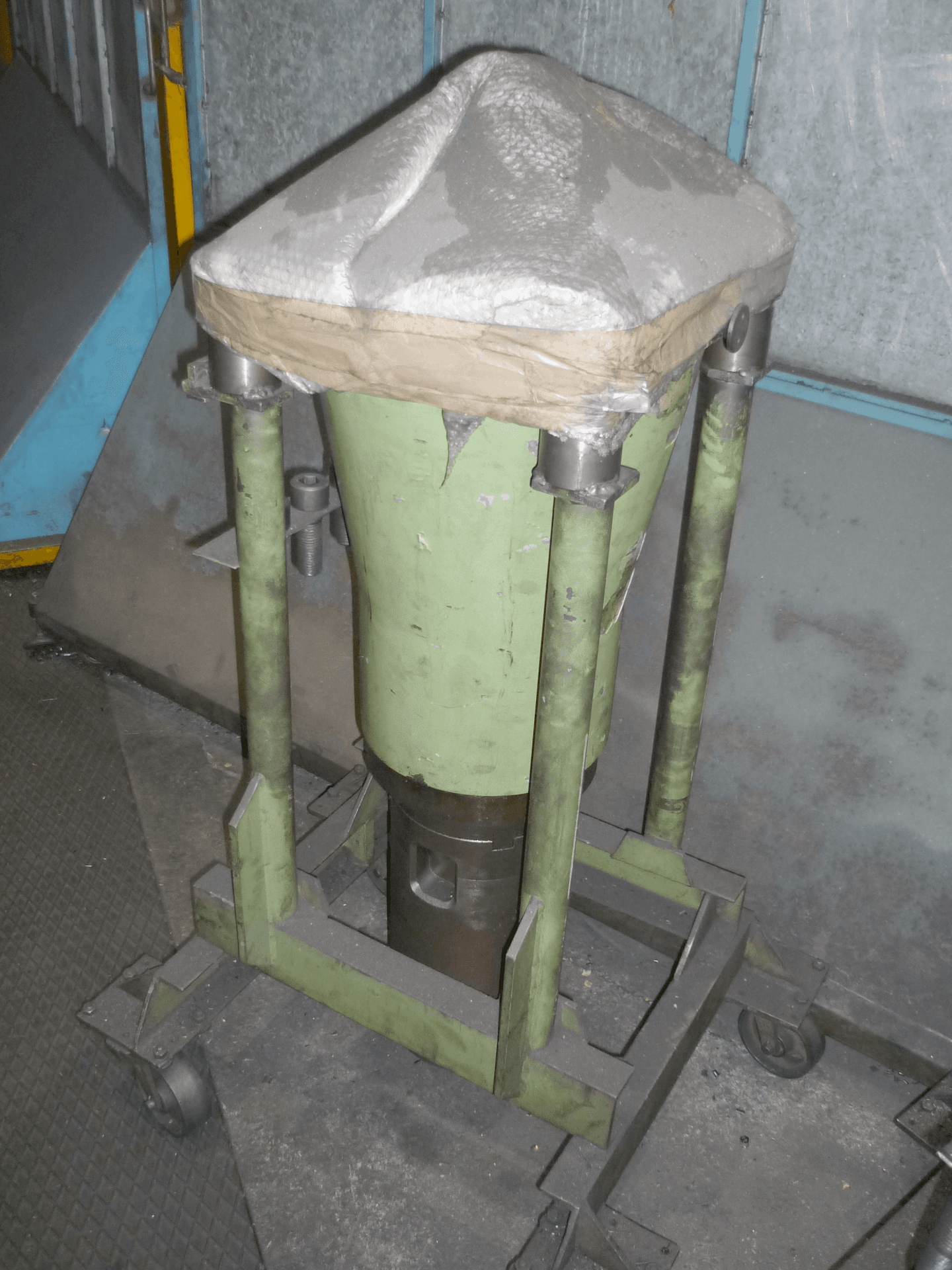

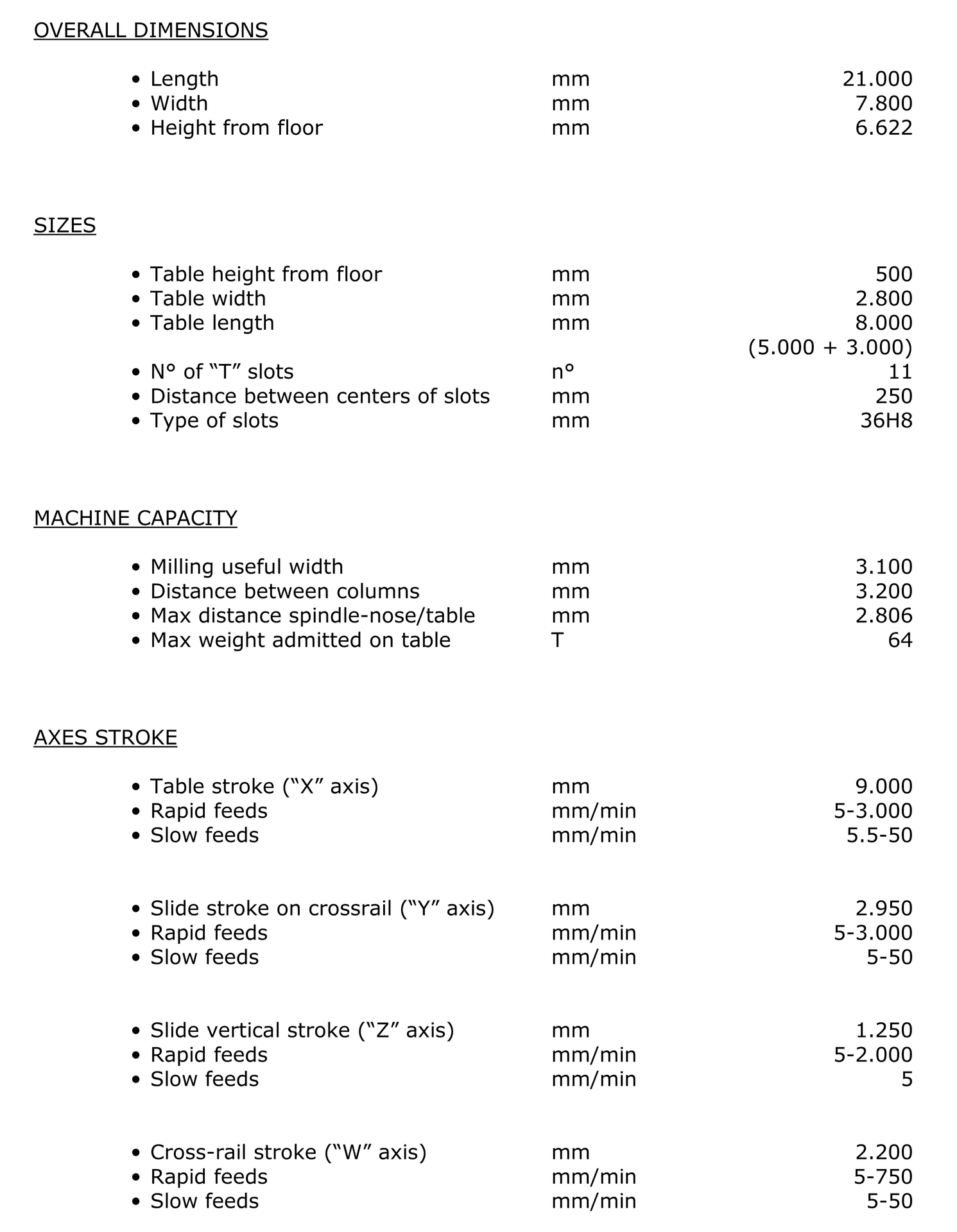

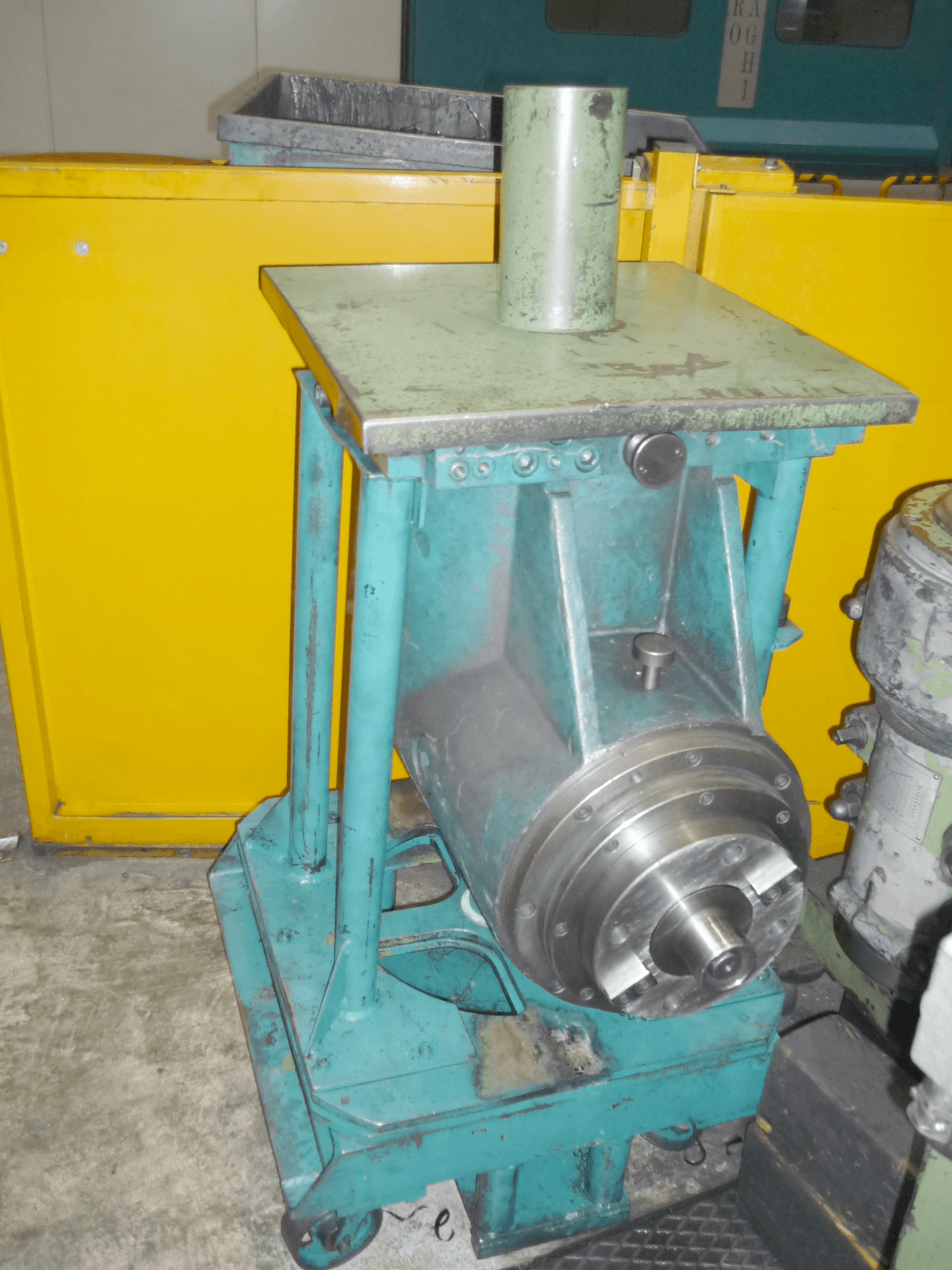

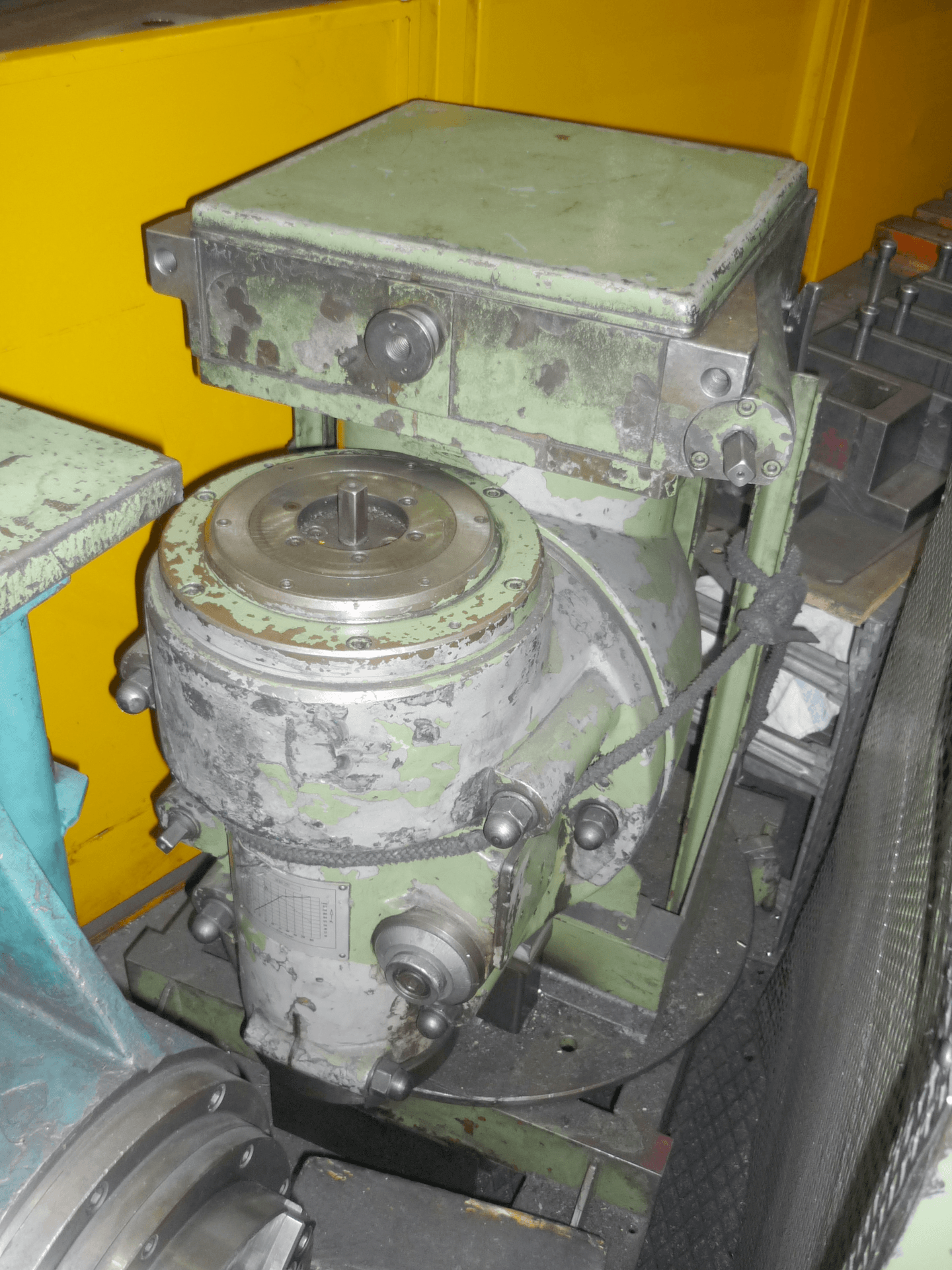

{"Number of axis total": "3", "Table length": "8000 mm", "Table width": "2800 mm", "Number of T-channels": "11", "T-channel width": "36H8 mm", "Distance of the T-slots": "250 mm", "Travels:": "", "X axis": "5 - 3000 mm/min", "Y axis": "5 - 3000 mm/min", "Z axis": "5 - 2000 mm/min", "W axis": "5 - 50 mm/min", "Distance table to spindle max.": "2806 mm", "Distance between columns": "3200 mm", "Table load max.": "64000 kg", "Taper in spindle": "60 ISO", "Spindle speeds:": "", "number (steps)": "16", "from": "20 t/min", "up to": "750 mm/min", "Feeds:": "", "X axis from": "5 mm/min", "Y axis from": "5 mm/min", "Z axis from": "5 mm/min", "W axis from": "5 mm/min", "Creep speeds:": "", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "100 kW", "Spindle torque": "13000 Nm", "Overall dimensions about:": "", "Length": "21000 mm", "Width": "7800 mm", "Height": "6622 mm", "Various accessories:": "", "90\u00b0 attachment": "", "90\u00b0 narrow attachment": "", "Vertical extension": "", "Tilting attachment": ""}
