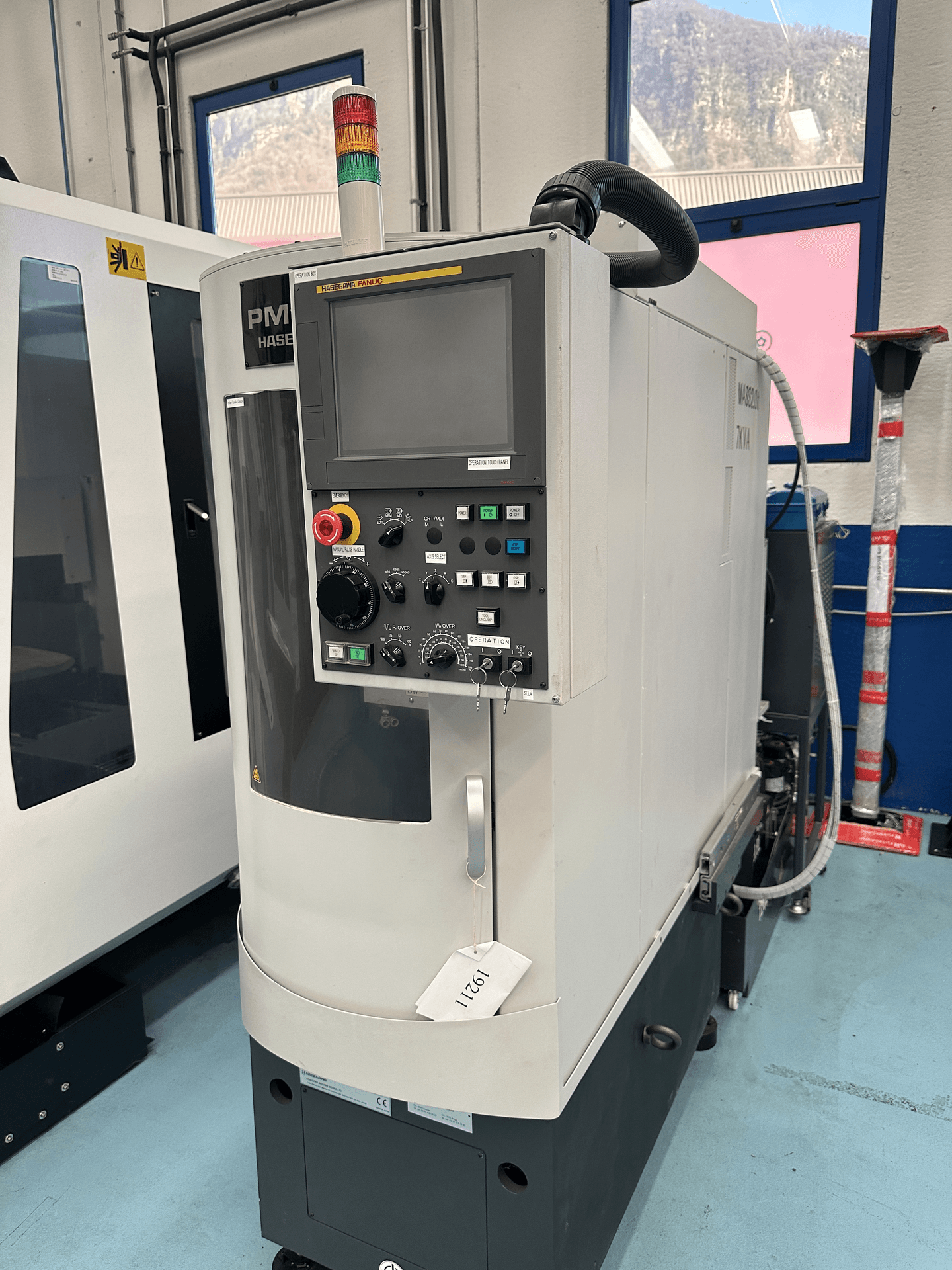

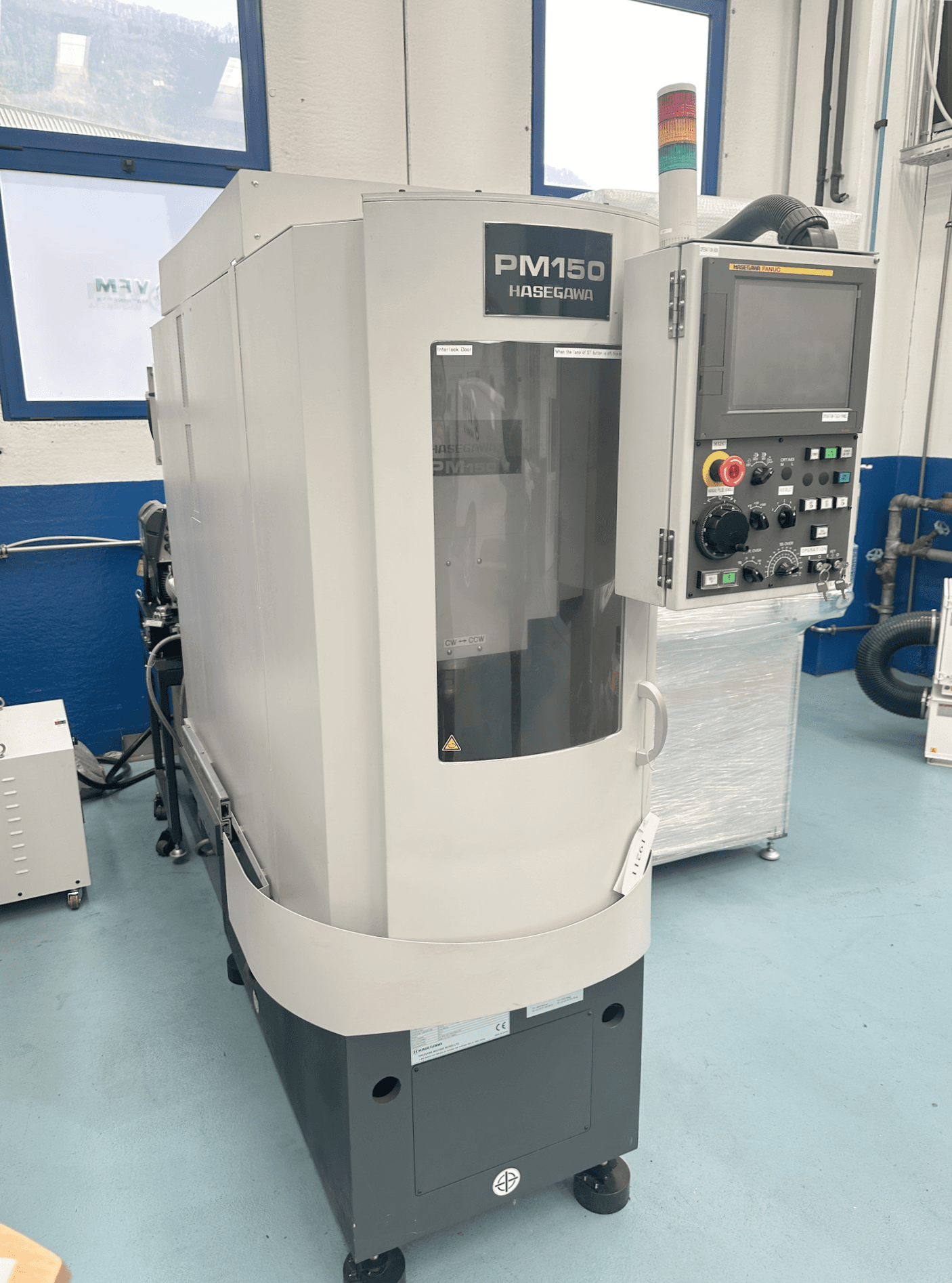

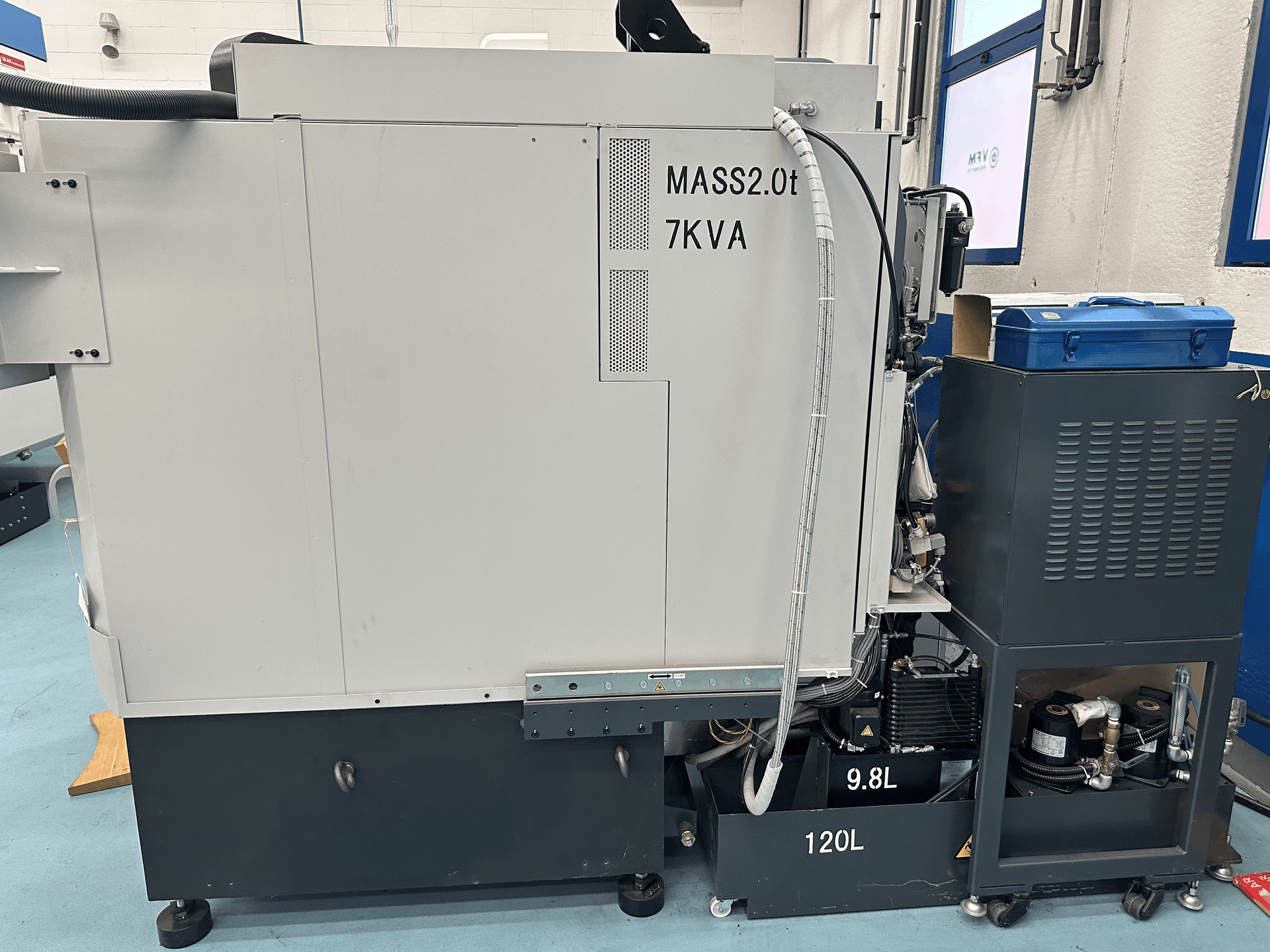

019211 - HASEGAWA PM 150-01

Description

{"Table length": "300 mm", "Table width": "260 mm", "Longitudinal travel (X-axis)": "150 mm", "Transversal travel (y axis)": "225+50 ATC mm", "Vertical travel (z axis)": "200 mm", "Table load max.": "80 kg", "Distance from vertical": "", "spindle to table": "140 ~ 340 mm", "Taper in spindle": "HSK-E32", "Spindle speeds:": "", "stepless": "", "vertical from": "100 t/min", "up to": "30000 t/min", "Tool changer:": "", "number of tools": "17", "Rapid traverse:": "30 m/min", "Milling spindle motor": "3.0 / 4.5 kW", "Total power required": "12 kVA", "Machine's weight about": "2000 kg", "Overall dimensions machine:": "", "Length": "1750 mm", "Width": "600 mm", "Height": "1800 mm", "Various accessories:": "", "Handwheel electroinic": "", "Full splash cabin": "", "Coolant system": "120 ltr.", "Tool changer: (number of tools)": "17", "Automatic setting tool": "BLUM Z-Pico", "Interface:": "Flash/USB/Ethernet", "Interface serial port RS 232-C, V 24": "", "Spindlecooling": "", "Status light": ""}
