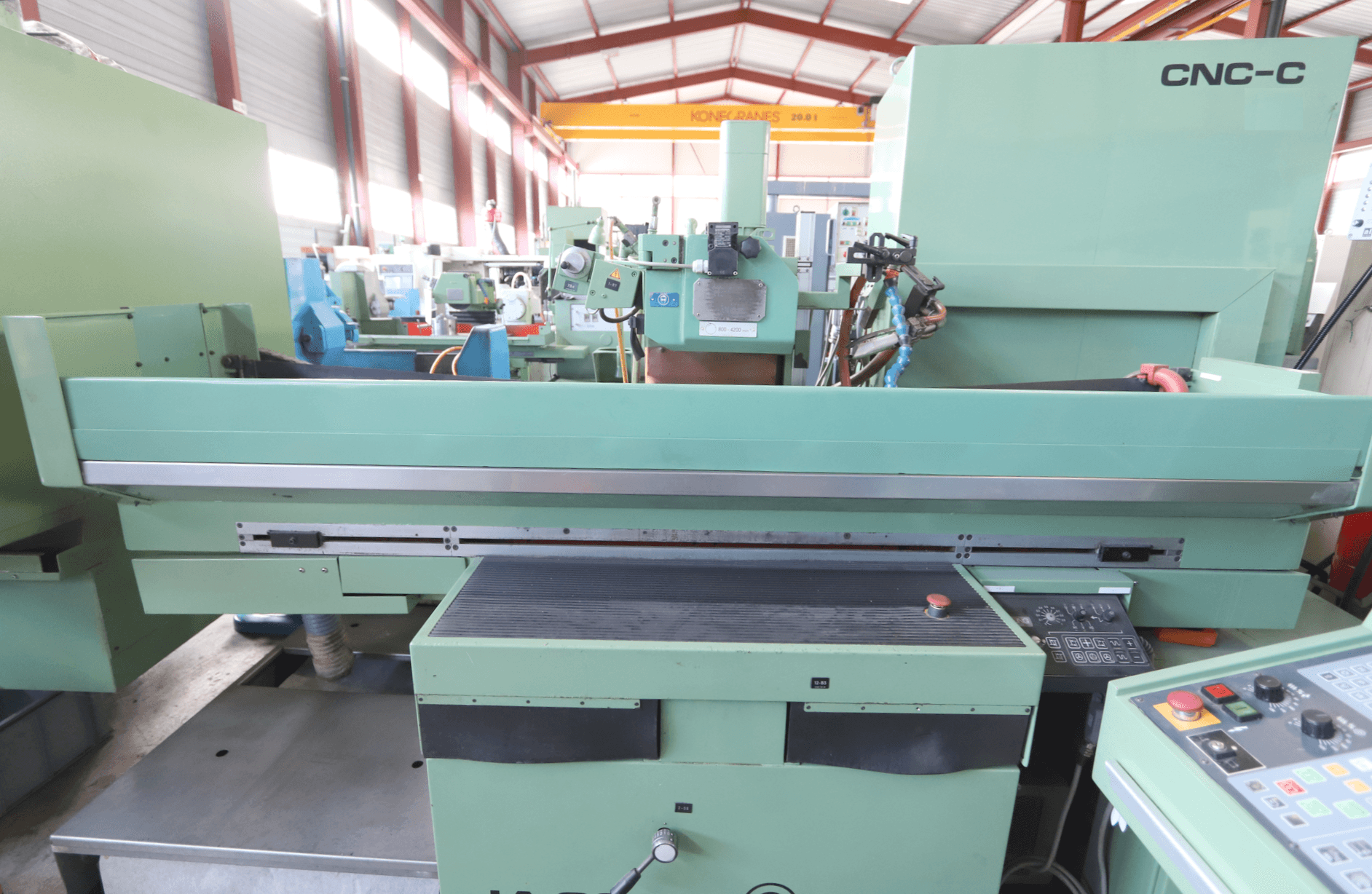

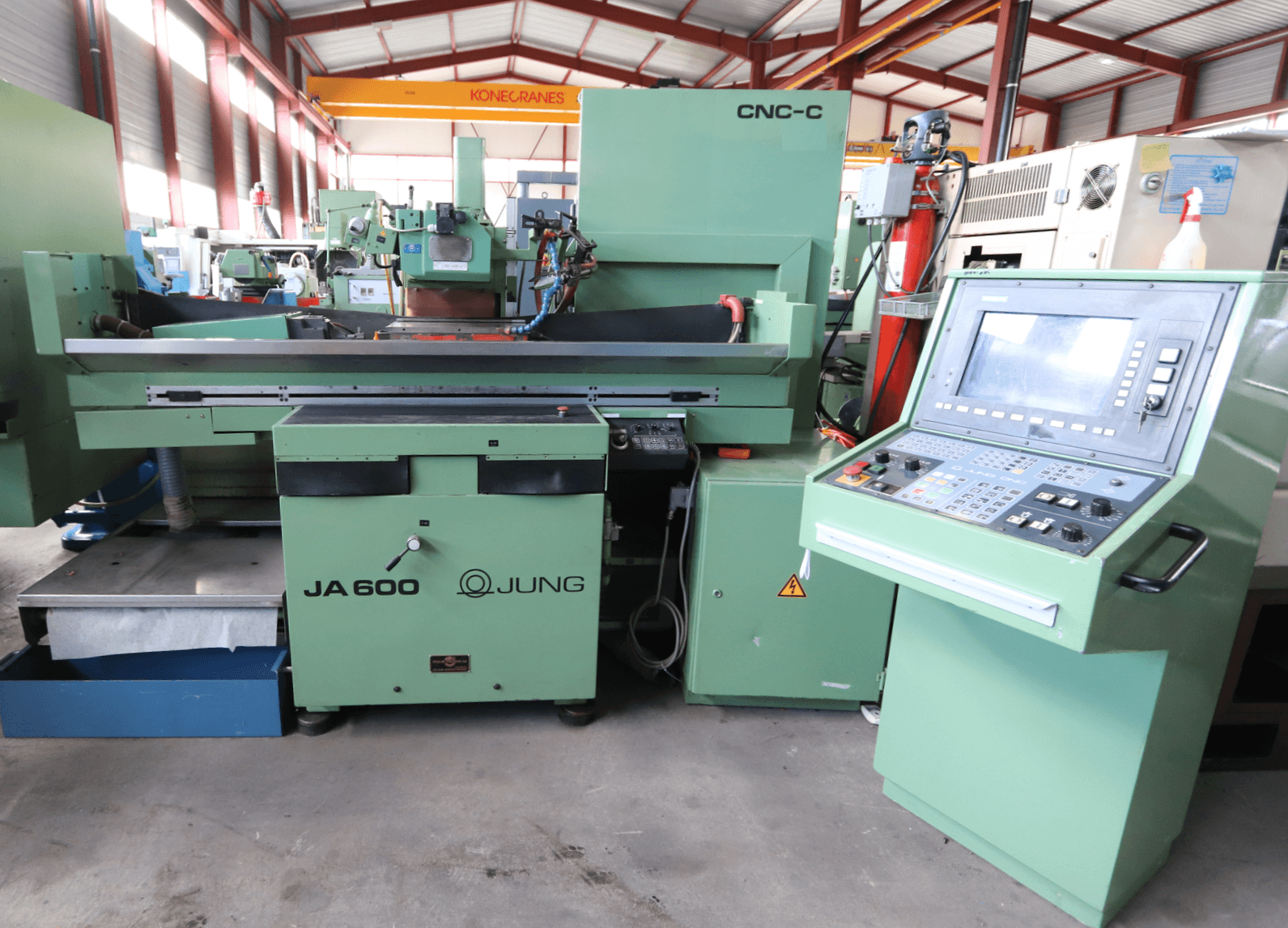

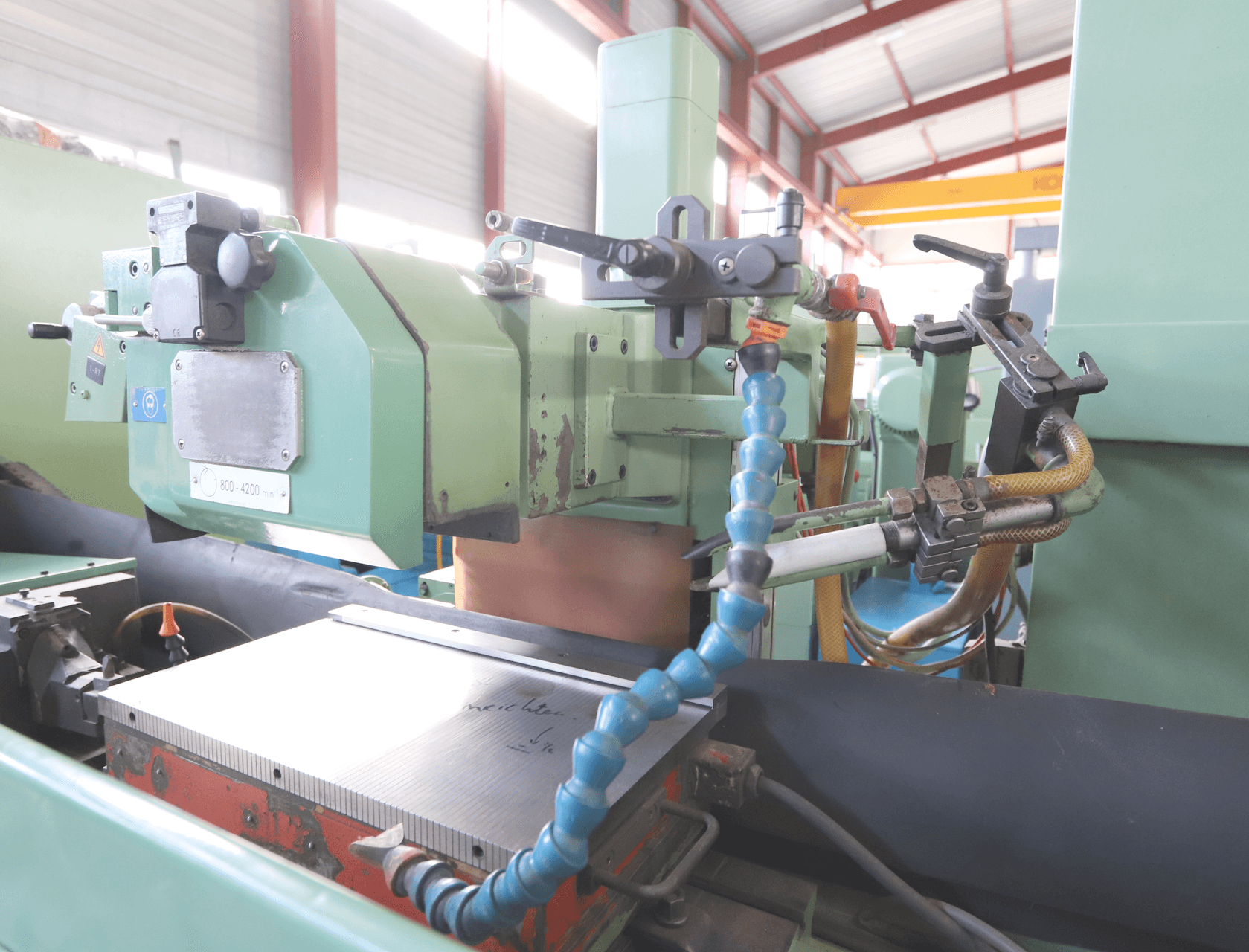

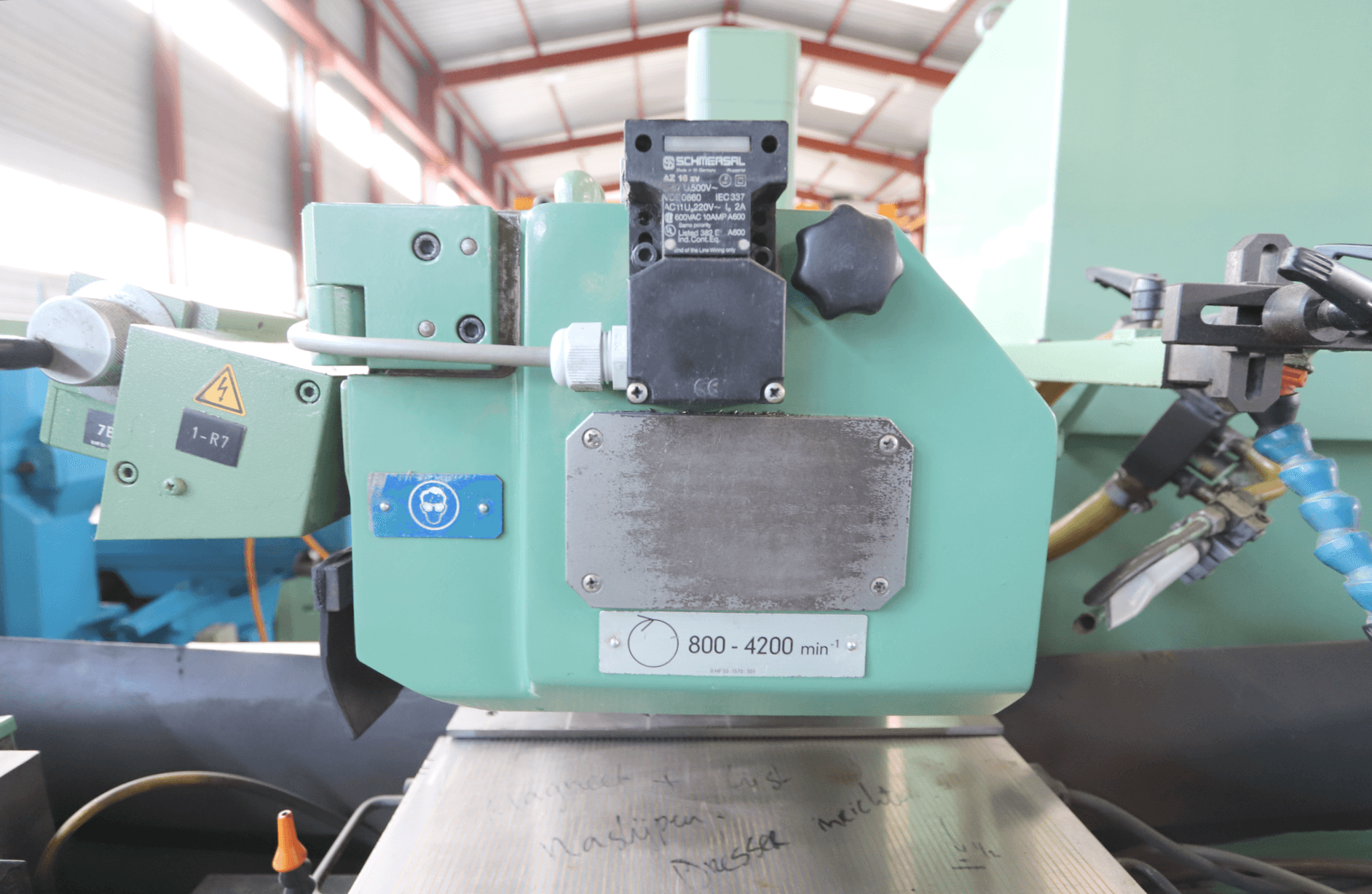

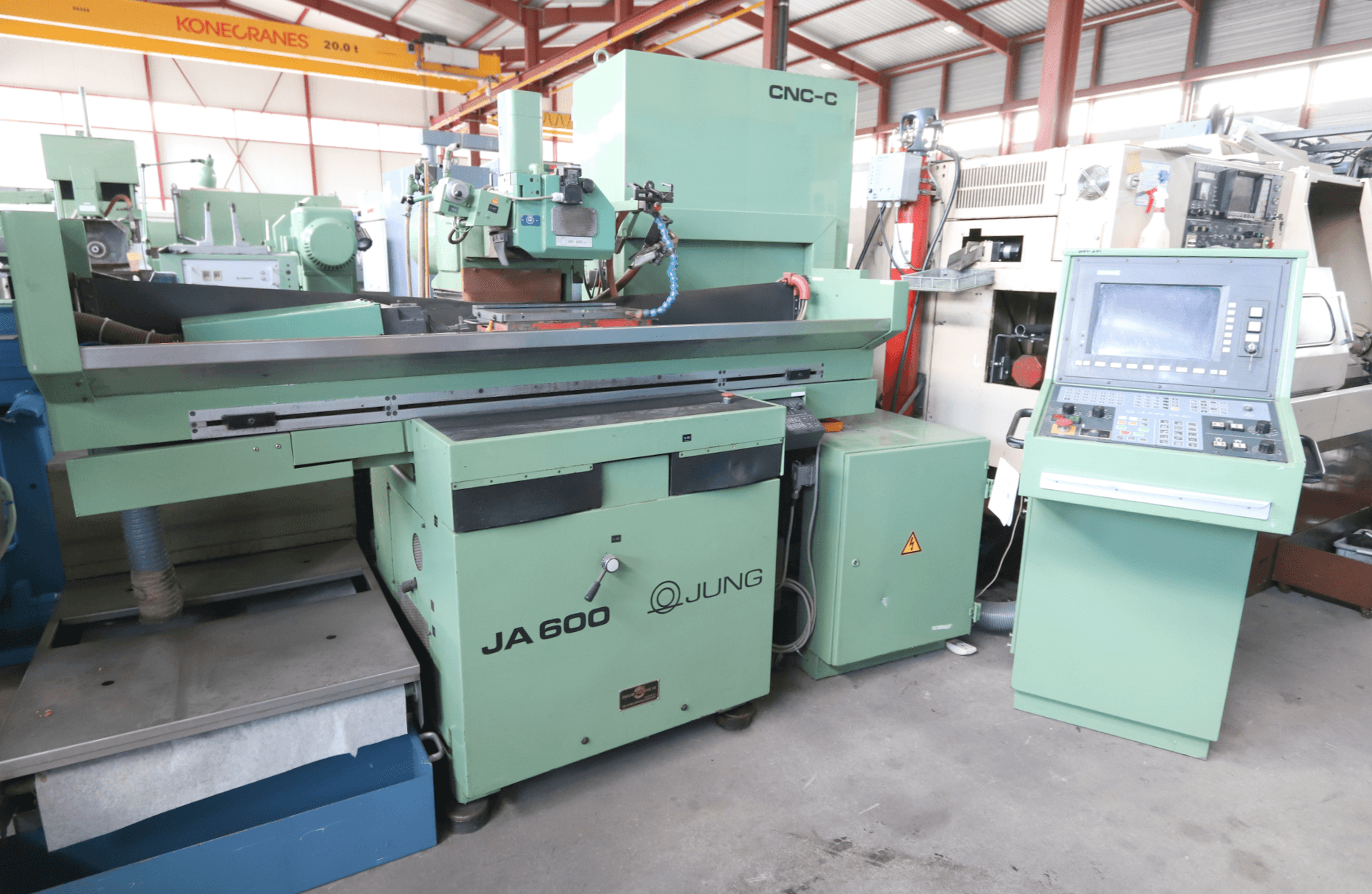

018809 - JUNG JA 600-C

Description

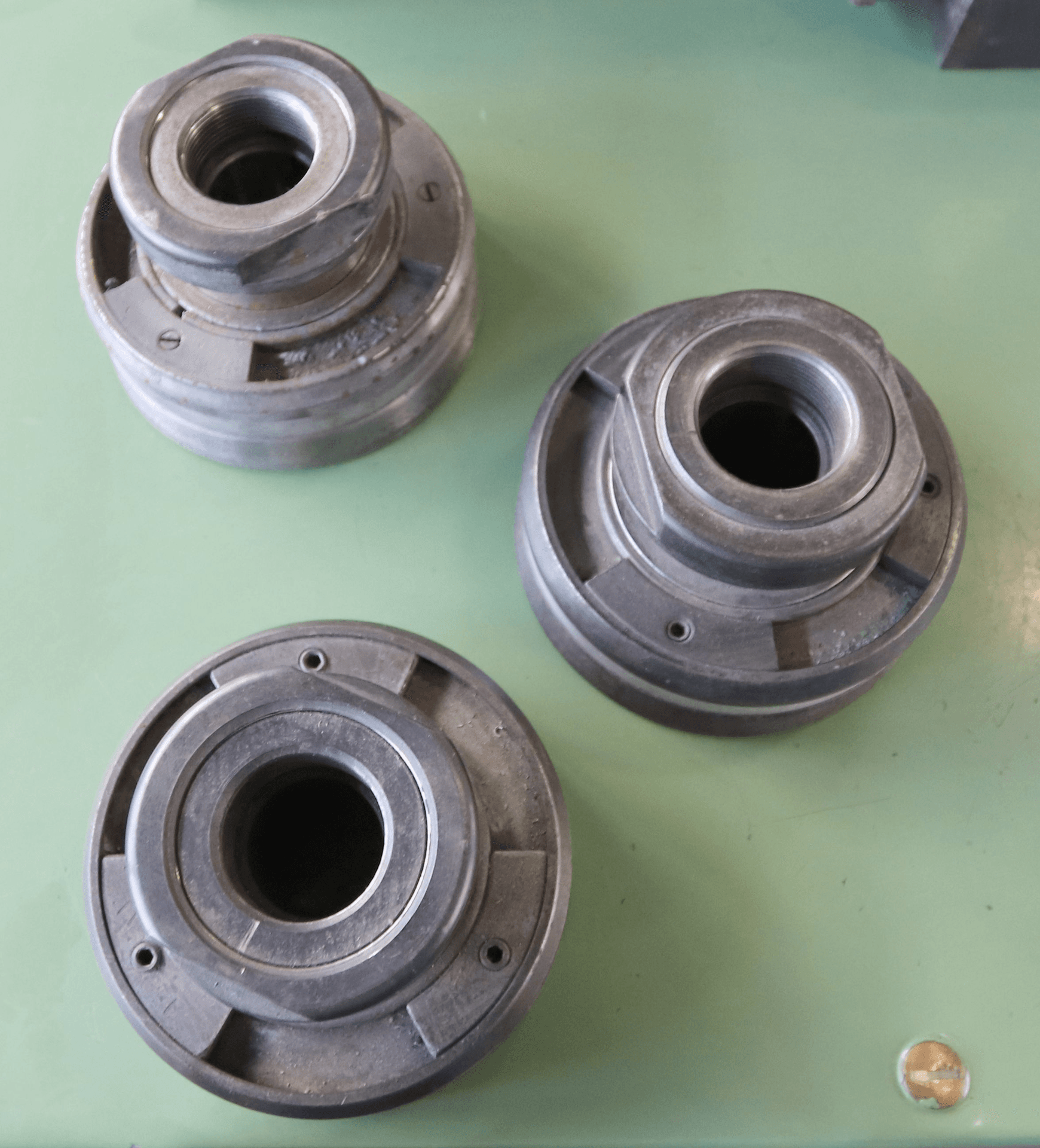

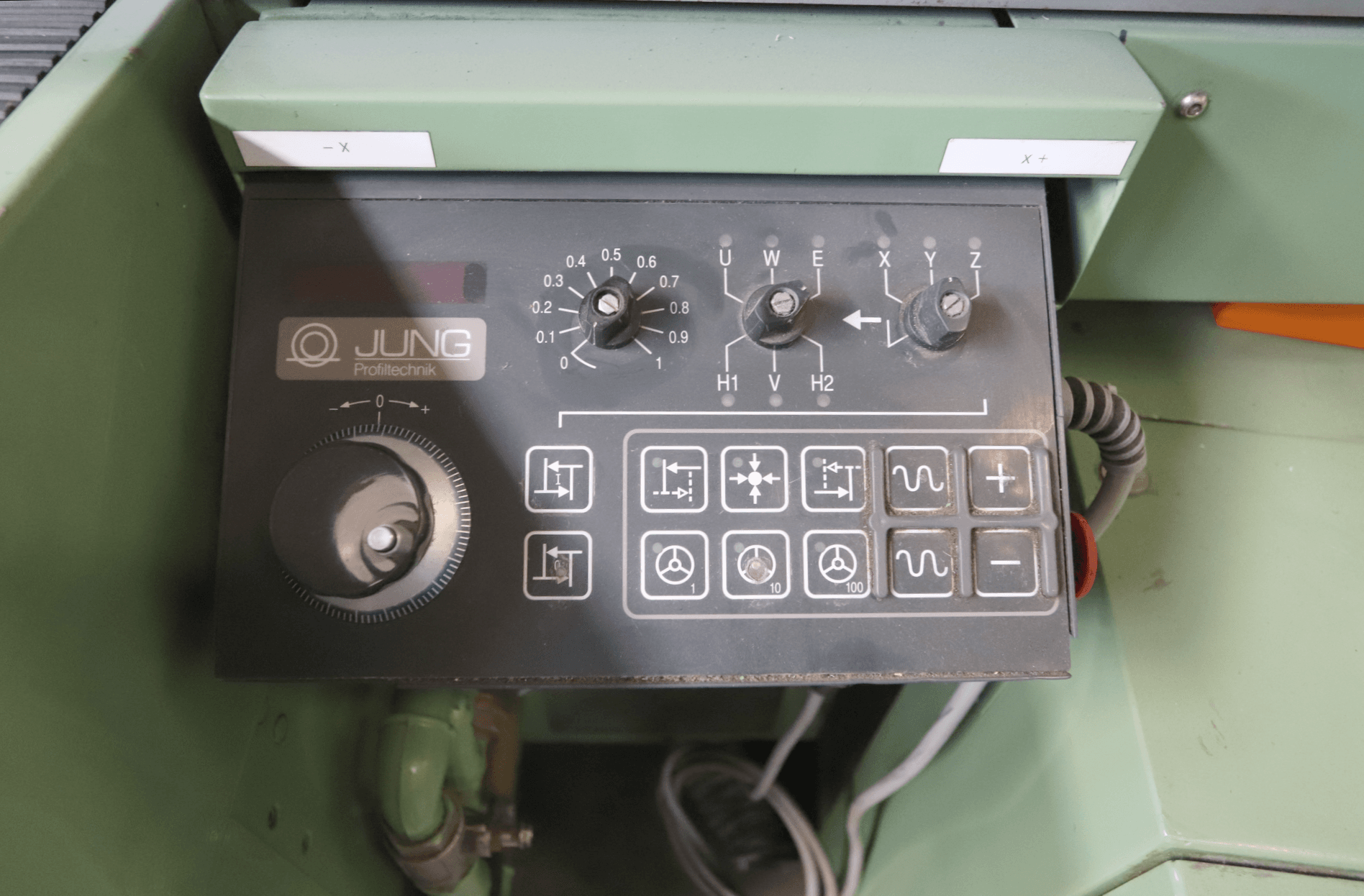

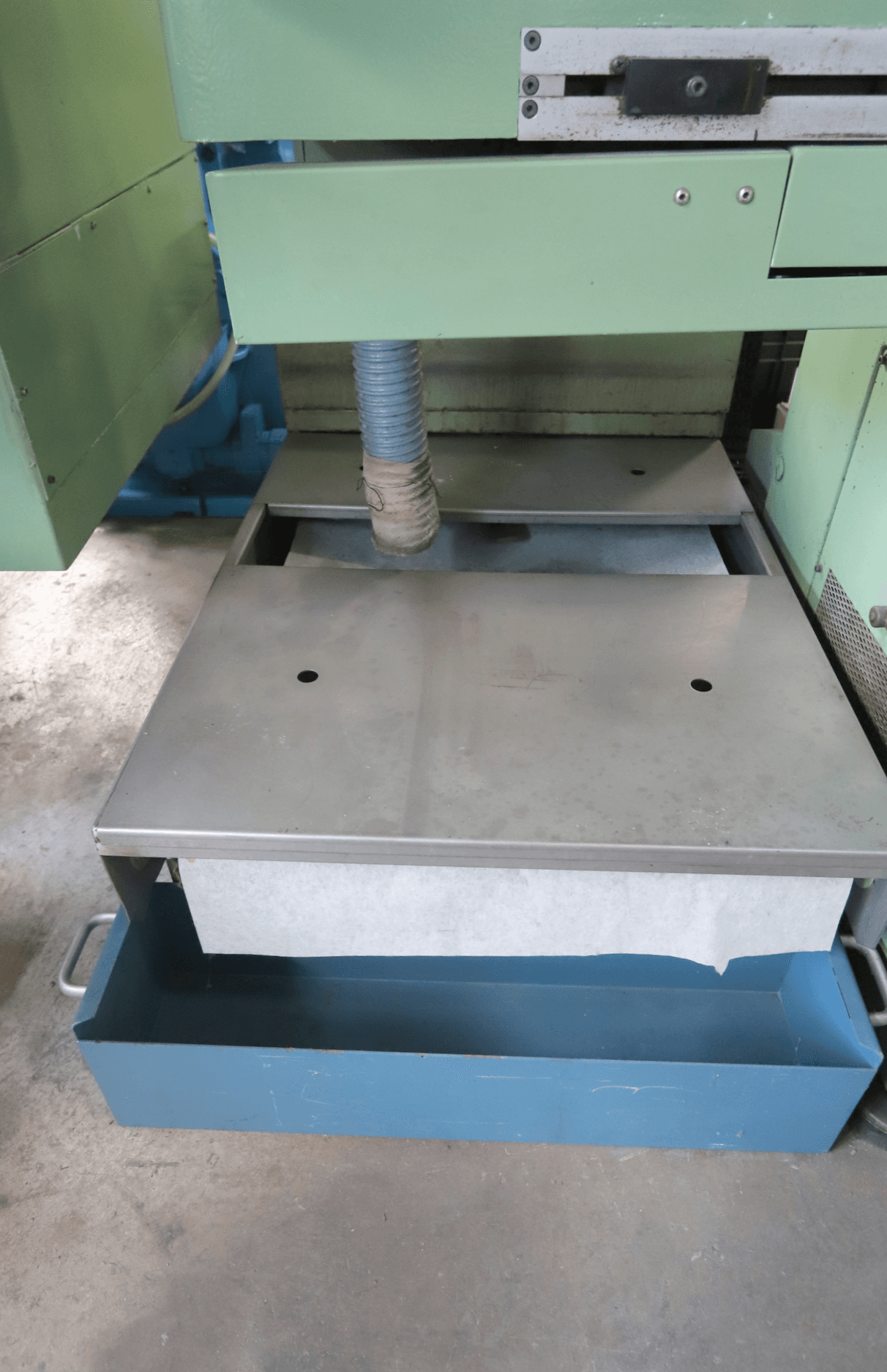

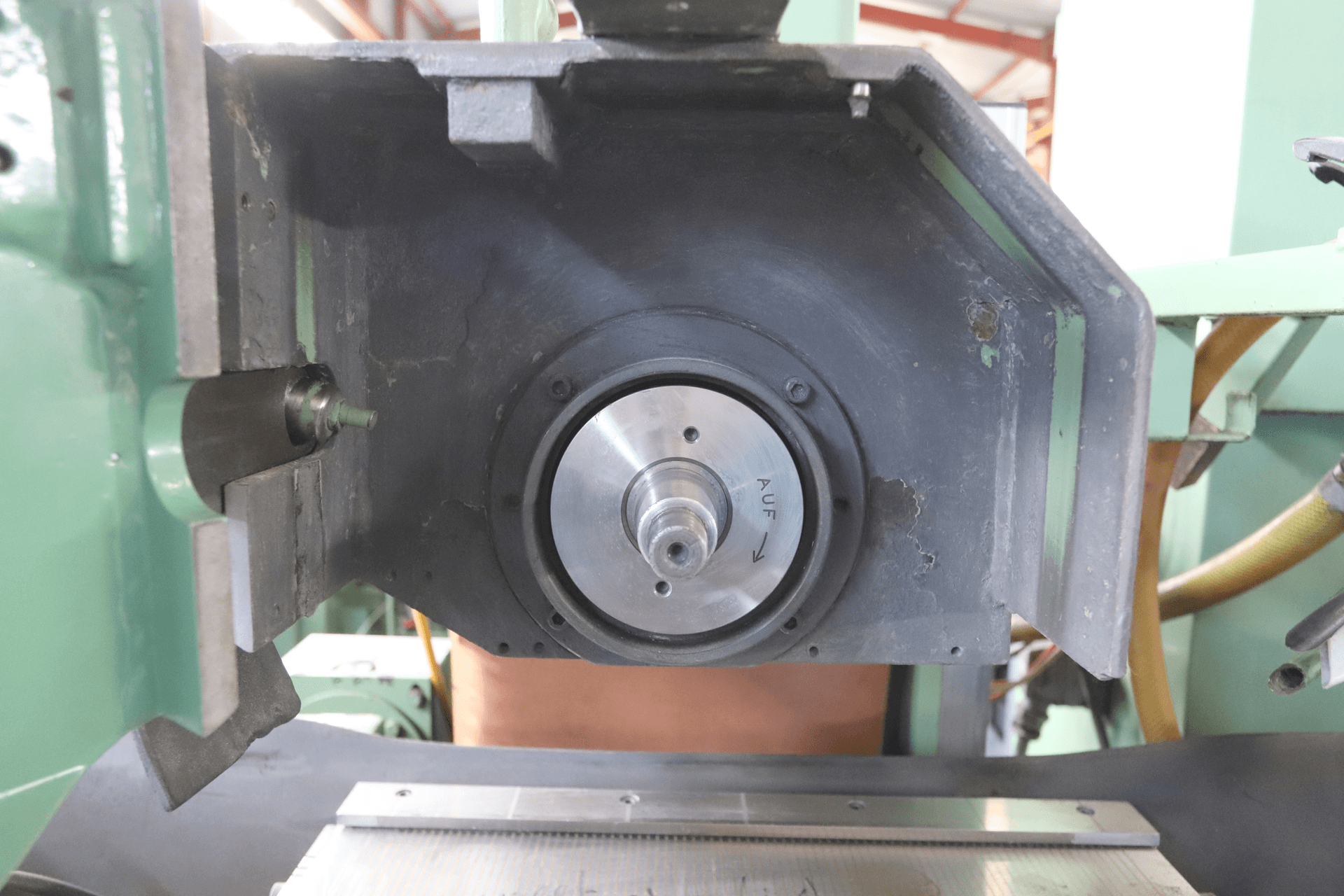

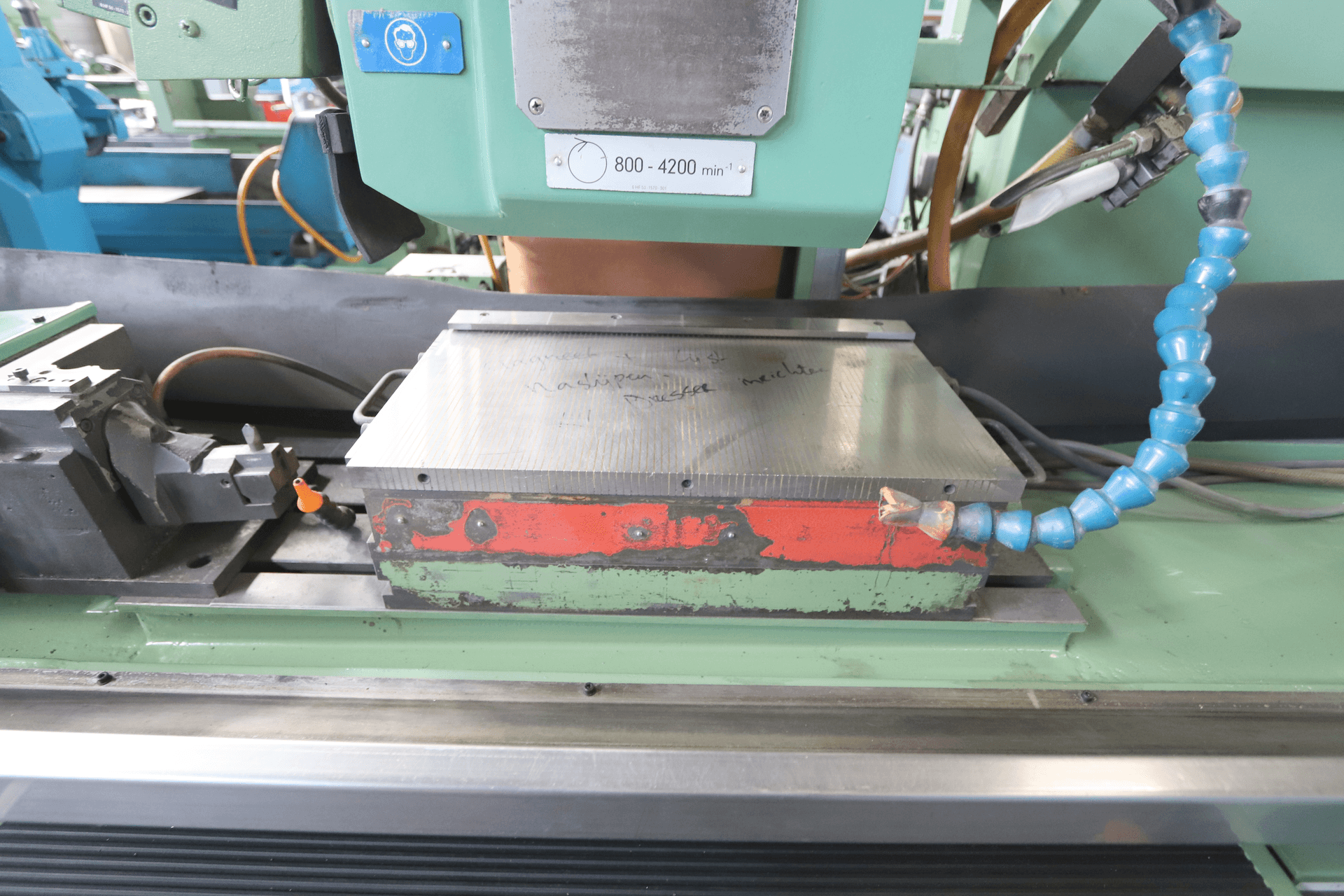

{"Table length": "600 mm", "Table width": "200 mm", "Longitudinal travel (X-axis)": "600 mm", "Cross travel (z-axis)": "280 mm", "vertical travel (Y-axis)": "370 mm", "Max. distance from table": "", "to spindle centreline": "500 mm", "Table load max.": "150 kg", "Grinding wheel:": "", "Diameter": "300 mm", "Width": "240 mm", "Bore": "76 mm", "Grinding wheel speeds:": "", "from": "1 m/min", "up to": "24 m/min", "Table speeds:": "", "stepless": "", "Voltage 50 Hz 3x": "400 Volt", "Grinding spindle motor": "10 kW", "Total power required": "12 kVA", "Machine's weight about": "2300 kg", "Overall dimensions machine:": "", "Length": "450 mm", "Height": "1850 mm", "Various accessories:": "", "Coolant system": "", "Paper filtration system": "", "Electrical magnetic chuck": "", "Redressing device": "", "Wheel dresser on CNC table": "", "Set of flanges": "", "Splash guard": "", "Electronic hand held control": ""}
