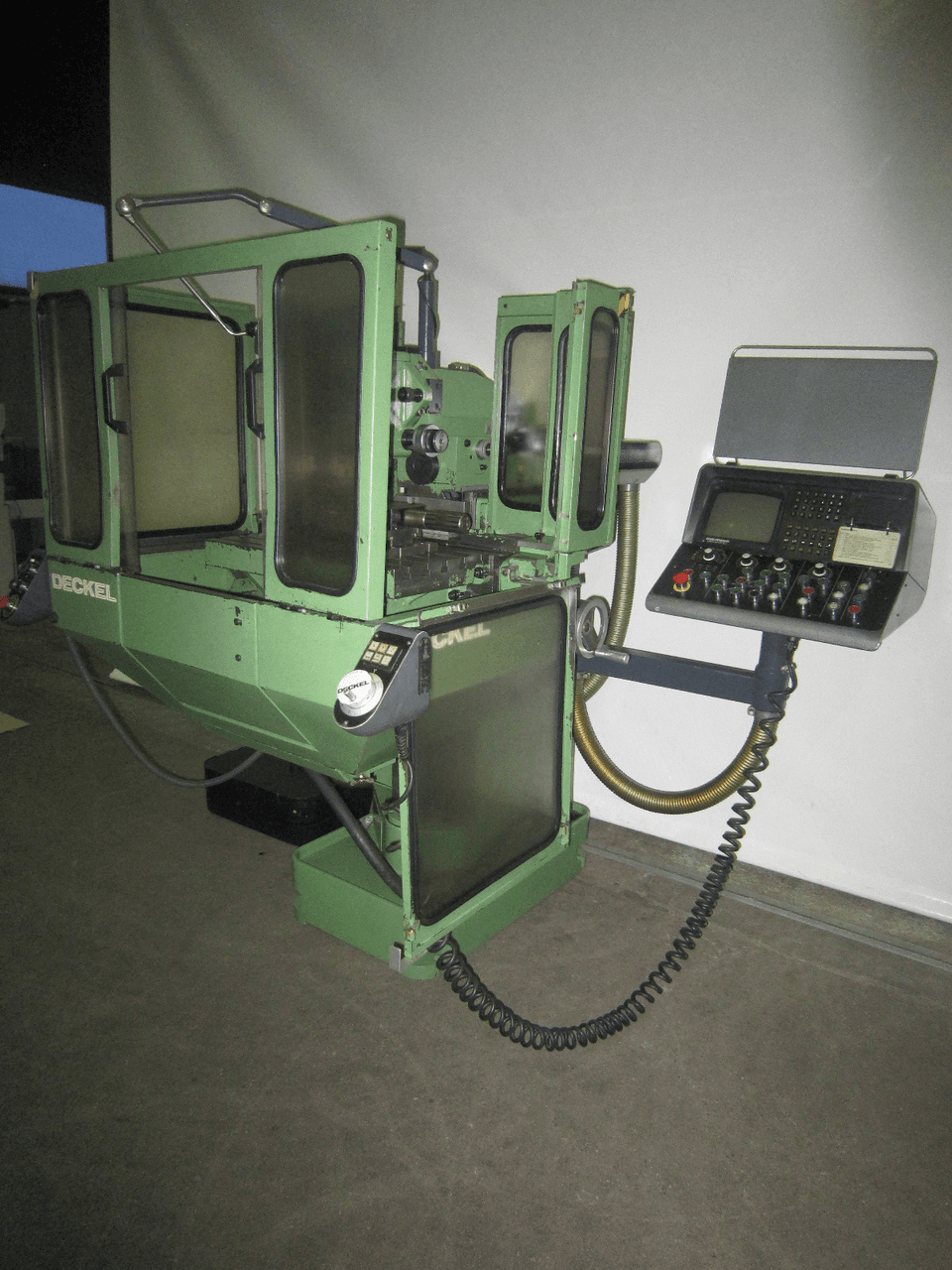

017659 - DECKEL FP 2 NC

Description

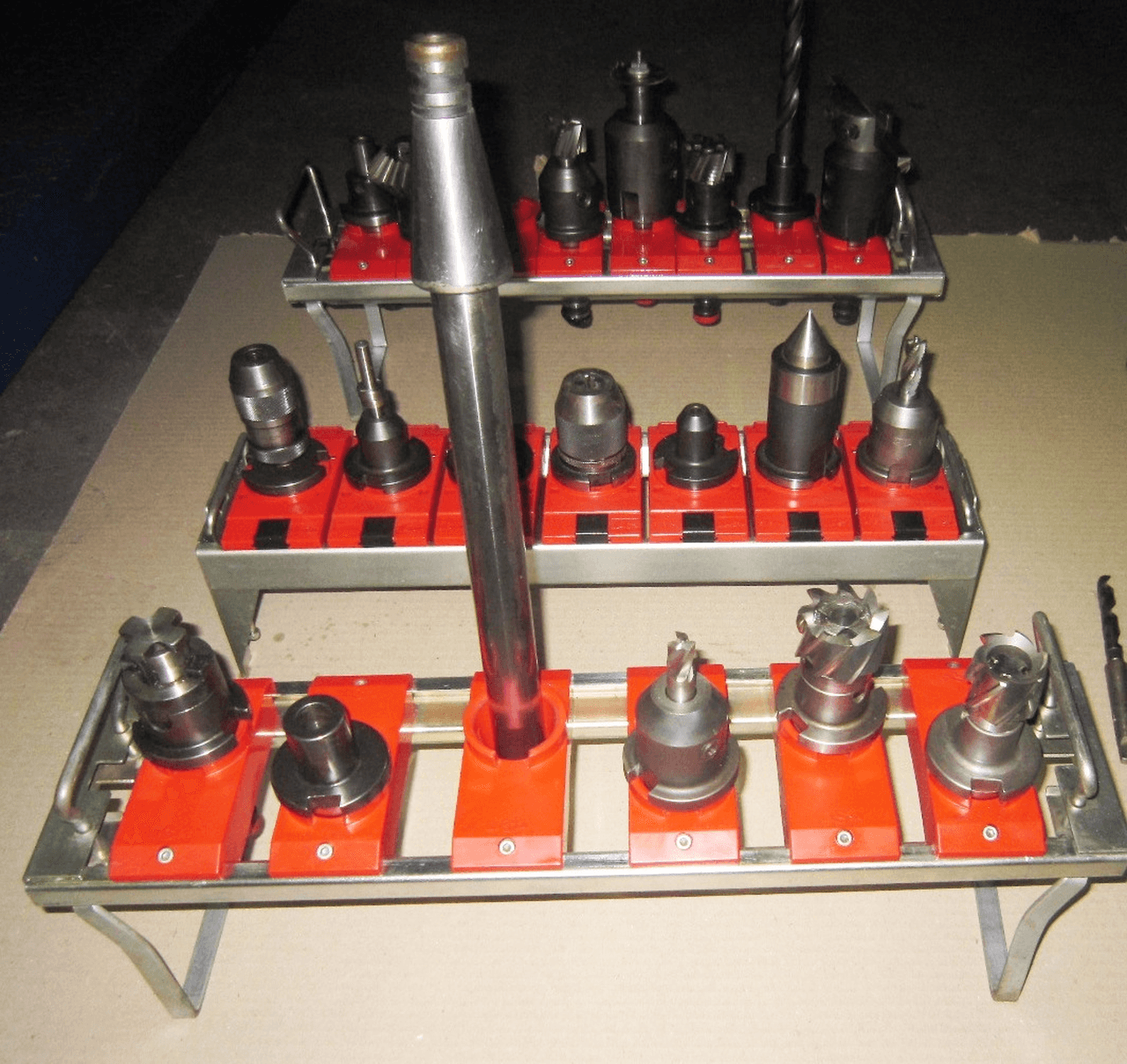

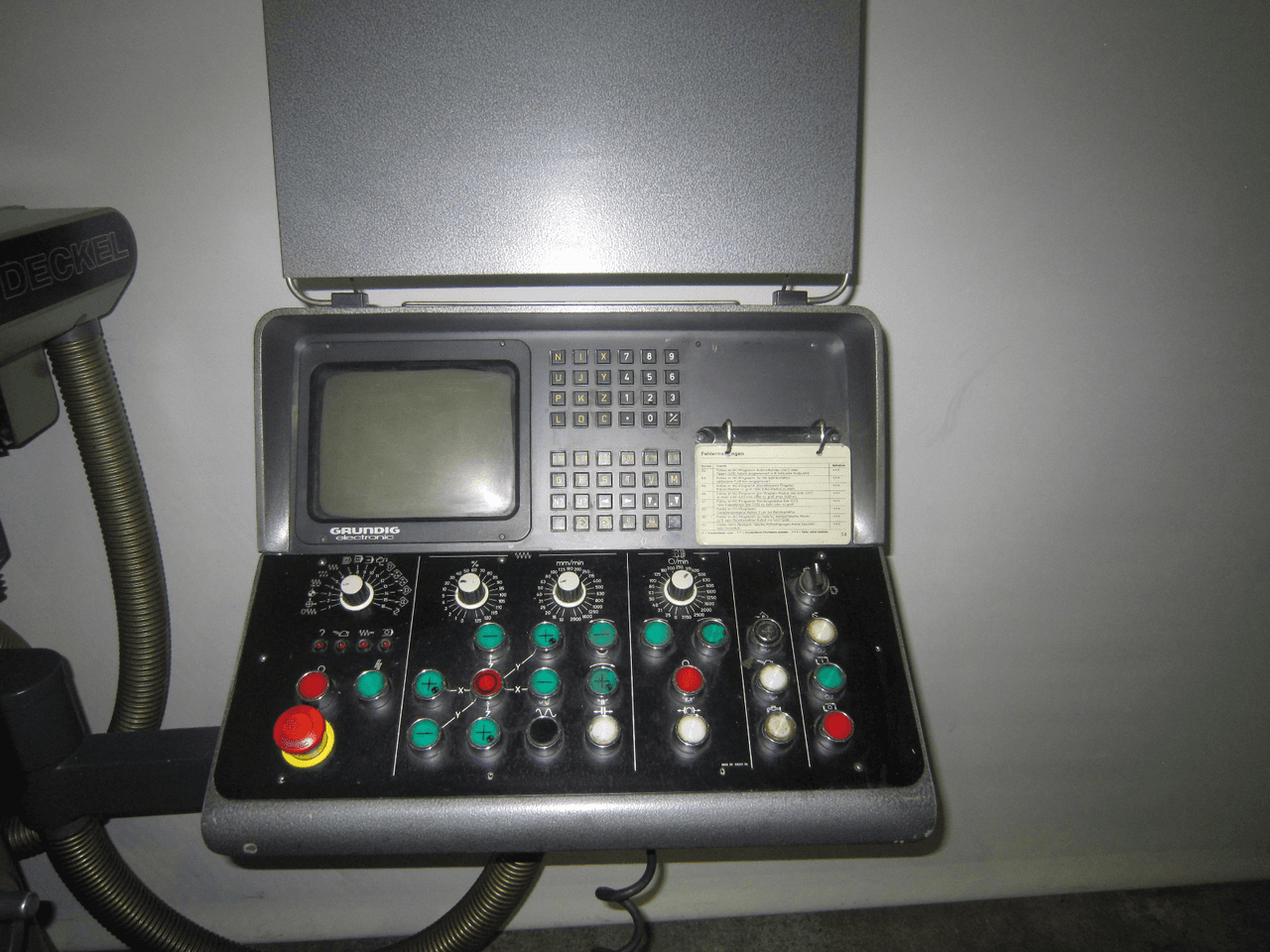

{"Table length": "632 mm", "Table width": "277 mm", "Longitudinal travel (X-axis)": "300 mm", "Transversal travel (y axis)": "220 mm", "Vertical travel (z axis)": "400 mm", "Table load max.": "400 kg", "Distance from vertical": "", "spindle to table": "93 - 525 mm", "Distance from spindle axis": "", "Spindle speeds:": "", "number (steps)": "21", "vertical from": "31.5 t/min", "up to": "2000 mm/min", "Feeds:": "", "stepless": "", "longitudinal from": "2 mm/min", "transversal from": "2 mm/min", "vertical from": "2 mm/min", "Rapid traverse:": "4 m/min", "Vertical quill travel": "60 mm", "Stroke of horizontal spindle": "65 mm", "Voltage 50 Hz 3x": "380 Volt", "Milling spindle motor": "1.6 / 2 kW", "Machine's weight about": "1215 kg", "Overall dimensions machine:": "", "Length": "2500 mm", "Width": "2100 mm", "Height": "1800 mm", "Various accessories:": "", "Vice: width": "125 mm", "Rigide table": "", "Electronic hand held control": "", "Handling with handwheels": "", "Set of toolholders": "", "Coolant system": "", "Machine lamp": ""}
