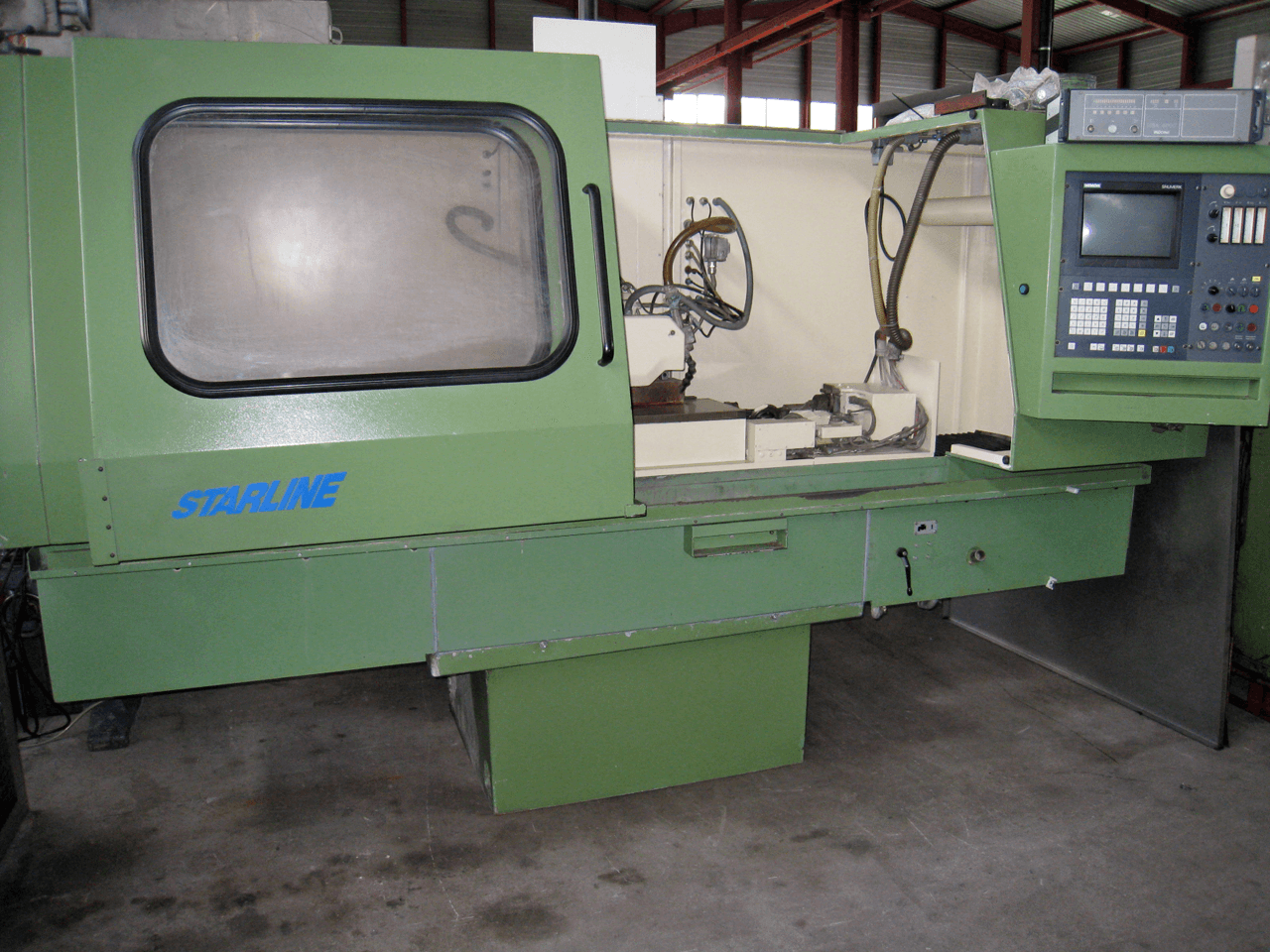

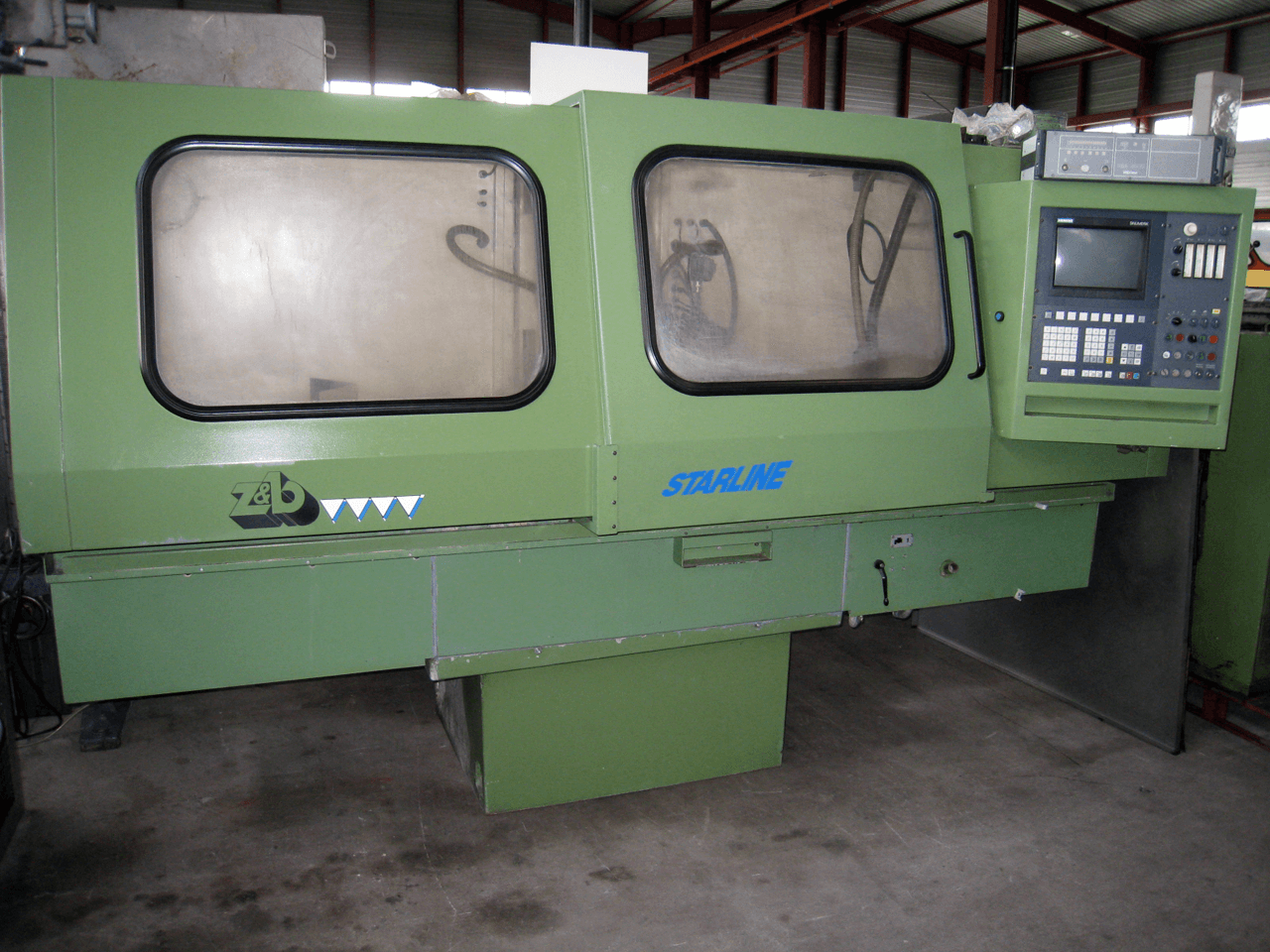

011348 - ZIERSCH + BALTRUSCH STARLINE 800 CNC

Description

{"Table length": "800 mm", "Table width": "300 mm", "Max. distance from table": "", "to spindle centreline": "600 mm", "Grinding length": "800 mm", "Grinding width": "300 mm", "Grinding wheel:": "", "Diameter": "250 mm", "max. width": "70 mm", "Width": "300 mm", "Bore": "51 mm", "Table speeds:": "", "stepless": "", "from": "mm/min", "up to": "10000 mm/min", "Creep feed:": "", "Automatic cross feed:": "", "Automatic vertical feed:": "", "Voltage 50 Hz 3x": "400 Volt", "Grinding spindle motor": "6.6 kW", "Total power required": "22 kVA", "Machine's weight about": "4500 kg", "Various accessories:": "", "Coolant system": "", "Paper filtration system": "", "Oil mist extractor": "", "Stabilisation coolant temperature": "", "Electrical magnetic chuck": "", "Length": "800 mm", "Redressing device": "TAG", "Profile wheel trueing attachment": "TAD", "Creep feed": "", "Electronic balancing device": "", "Lamp": "", "Full splash cabin": "", "Interface serial port RS 232-C, V 24": ""}
